PV924-6KV
Downlink Ports ：
1G RJ45,2.5G RJ45,5G RJ45,10G RJ45
Port Count ：
24 Ports
PoE Type ：
PoE+(802.3at),PoE++(802.3at-4 pair),PoE(802.3af),Non-PoE
¥ 0
¥ 0
Overview
Hardware Features
Firmware Features
Applications
Order Information
Download
The PV924-6KV network surge protector is specifically designed to meet the surge protection requirements of digital network signals. It is suitable for precise overvoltage protection of monitoring systems integrating multiplexed computer network signals, hubs, network cards, network switches, modems, fax machines, and data communication equipment, protecting them from damage caused by induced overvoltage, operating overvoltage, and electrostatic discharge; it features multi-level protection, high current carrying capacity, low limiting voltage, fast response time, low insertion loss, and high transmission rate.
Working Principle

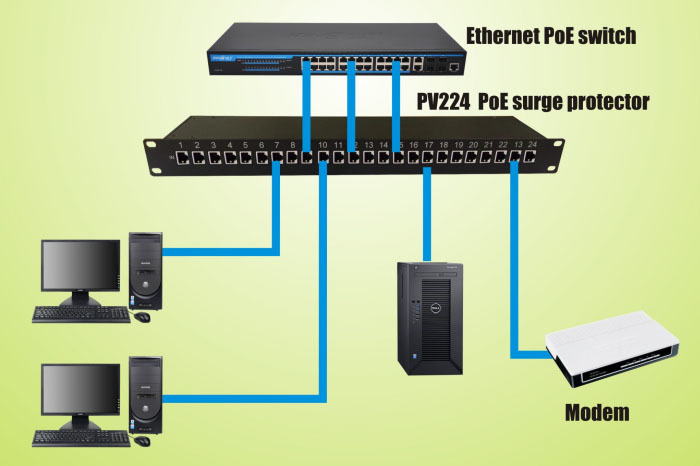

The surge protector is connected in series to the front end of the protected equipment. When the transmission line is subjected to induced lightning and other transient overvoltage surges, the surge current passes through the protective branch of the surge protector and is discharged to ground, clamping the output voltage within the allowable voltage range of the equipment, thus ensuring the safe operation of the equipment.
Product Features
● 10/100/1000 Mbps rate
● Up to 6KV port protection
● Suitable for CAT5, CAT5e, CAT6 cables
● All 8 cores are protected
● Features a shielded network port and a full aluminum shell design
● Complies with IEC 61643-21 standard
● Rack-mountable with grounding wire
● Certified to CE class A, LVD, FCC, ROHS 2.0
|
Description |
|
|
Number of Channels |
24 Path |
|
Rate |
10/100/1000M |
|
Operating Voltage |
48V |
|
Maximum Voltage |
57V |
|
Operating Current |
0.8A |
|
Normal Discharge Voltage |
2KV(line-line) 6KV(line-PG) |
|
Overall Normal Discharge Voltage |
6KV-150A |
|
Residual Voltage |
≤ 7 0V(line-line) ≤ 7 0V(line-PG) |
|
Transmission Frequency |
250MHz |
|
250MHz Insertion Loss |
≤ 2dB |
|
Capacitance |
≤ 5000pF(line-line) ≤ 2500pF(line-PG) |
|
Operating Temperature |
-40 to 80℃ |
|
Electromagnetic Radiation |
FCC (Part15, Class A ) CE (EN55022/24) |
|
Safety Regulations |
CE/LVD (EN60950-1) |
|
ROHS |
ROHS 2.0 |
|
Interface Type |
Shielded RJ45 Port (input/output) |
|
Grounding Type |
Screw Grounding |
|
Installation Type |
Rack-mountable |
|
Housing Type |
Full Aluminum Housing |
|
Packing List |
|
|
Surge Protector |
1 Unit |
|
Instruction Manual |
1 This |
|
Product Model |
|
|
PV924-6KV |
24-port Gigabit 6KV Network Surge Protector |
