S2018-16P
Ports Type ：
Fiber Port,Copper Port,COMBO Port
Uplink Ports ：
1G COMBO
Downlink Ports ：
100M RJ45
Port Count ：
18 Ports
Management ：
Non-management
PoE Type ：
PoE(802.3af),PoE+(802.3at)
¥ 0
¥ 0
Overview
Hardware Features
Firmware Features
Applications
Order Information
Download

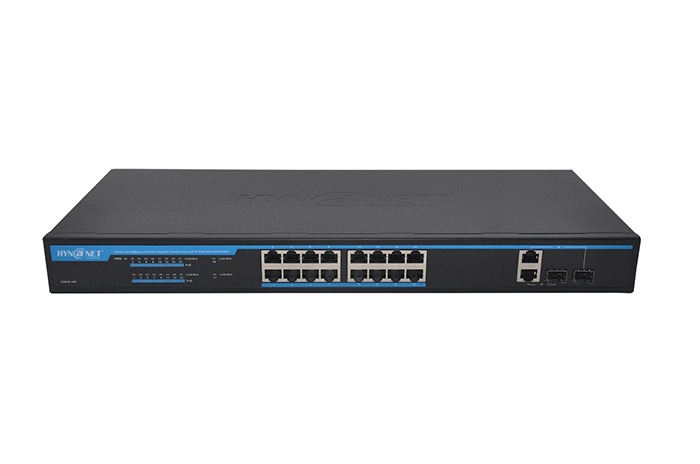

The S2018-P is an Ethernet PoE switch independently developed by Shenzhen Hi-Net Technology Co., Ltd. This product supports comprehensive PoE (Power Over Ethernet) functionality, providing -48V DC power to downstream PD devices (such as IP Phone, WLAN AP, Security, Bluetooth AP, etc.) via network cables for remote power supply. As a Power Sourcing Equipment (PSE) device, it supports IEEE802.3af and IEEE802.3at power supply standards.
The S2018-P has a standard 1U chassis, providing 16 100Mbps ports and 2 auto-switching Gigabit combo ports, with 16 PoE power ports. It offers a choice of 270W or 330W internal power supplies, allowing users to select the appropriate power supply for different environments. Each port can output up to 30W, suitable for various terminal devices.
Product Features
● Supports IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at
● Provides 16 100Mbps electrical ports + 2 Gigabit combo ports (RJ45/SFP)
● Provides 16 PoE power ports
● Built-in power supply, optional 270W/330W
● Up to 7.2Gbps backplane bandwidth
● Supports surge protection for power and data ports
● Supports 4K MAC address self-learning
● Dynamic LED indicators provide PoE and network status indication and troubleshooting
● Built-in power supply, 1U chassis, precision iron shell structure design, suitable for standard 19-inch racks
● Passed FCC, CE class A, and ROHS2.0 tests
|
Product Attributes |
|
|
Network Interface |
16 Hundred Megabit RJ45 Port 2 Gigabit Optical Multiplexing Port (RJ45/SFP) |
|
Indicator Light |
Power, port rate, port connection, POE |
|
Product Performance |
|
|
Backplane Bandwidth |
7.2 Gbps |
|
Packet Forwarding Rate |
5.36 Mpps |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
2.75 Mbit |
|
MAC Address Table |
4K |
|
PoE Total Power |
250W /3 10W |
|
Physical Attributes |
|
|
Packaging Dimensions |
440 x 200 x 44 mm |
|
Weight |
4KG |
|
Operating Temperature |
0 to 40 ℃ |
|
Storage Temperature |
-10 to 70 ℃ |
|
Operating Humidity |
5 to 95% Non-condensing |
|
Power Supply Method |
100-240VAC, 50/60Hz |
|
Maximum Power Consumption |
POE Output Includes :270 W / 330W Not Included PoE Output : 20 W |
|
EMC Standard |
FCC, CE, RoHS |
|
Reliability |
MTBF: 2 00,000 Hours |
|
Po E Function |
|
|
PoE Port |
Ports 1- 16 |
|
PoE Standard |
IEEE802.3af, IEEE802.3at |
|
Maximum per port POE Power |
30W |
|
PoE Voltage |
52VDC |
|
Pin Definition |
V- (RJ45 Pin1,2), V+ (RJ45 Pin 3,6) |
|
Packing List |
|
|
PoE Switch |
1 Unit |
|
User Manual |
1 Copy |
|
Warranty Card |
1 Copy |
|
Power Cord |
1 Piece |
|
Angle Iron |
2 Piece |
|
Screw |
4 Piece |
|
Switch Model |
|
|
S20 18-16 P-270 |
16 Hundred-megabit ports PoE Switch with 2 gigabit optical/electrical multiplexing ports ，Total power 270W |
|
S2018-16P-330 |
16 Hundred-megabit ports PoE Switch with 2 gigabit optical/electrical multiplexing ports ，Total power 330 W |
|
SFP Module |
|
|
GSFP-RJ45 |
1000M SFP module, RJ45 port |
|
GSFP-M-LC-R5 |
1000M SFP module, multi-mode, 500M, 850nm, LC |
|
GSFP- S -LC-20 |
1000M SFP module, single-mode, 2 0km, 1310nm, LC |
|
GSFP- S -LC-40 |
1000M SFP module, single-mode, 40km, 1310nm, LC |
|
GSFP- S -LC-80 |
1000M SFP module, single-mode, 80km, 1550nm, LC |
