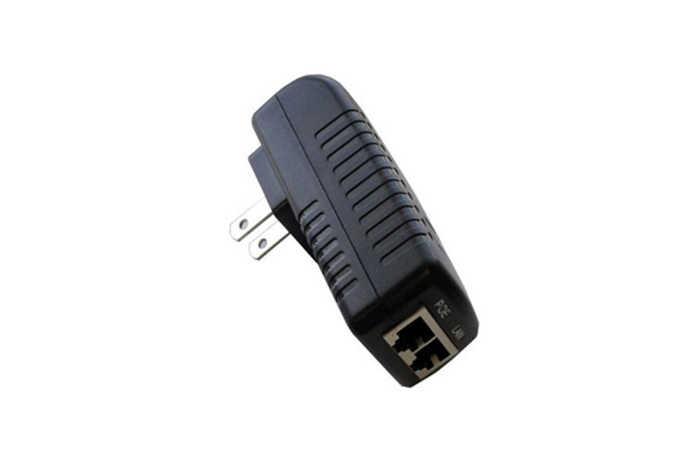

HN-30S

Model

Specification

HN-30S

Output

Output Voltage

DC 12V

DC 24V

DC 48V

Rated Current

2.5A

1.25A

0.63A

Current

0---2.5A

0---1.25A

0---0.63A

Ripple Wave

<100mVp-p

<150mVp-p

<200mVp-p

Output accuracy

±5%

±5%

±5%

Line Regulation

±2%

±2%

±2%

Load Regulation

±2%

±2%

±2%

Rated Power

30W

30W

30W

Input

Input Voltage

90V---265V AC

Normal working Voltage

100V---240V AC

Input Current

0.4A/110V; 0.2A/220V;

Frequency Range

47---63Hz

Efficiency

≥85%

Output Over-voltage protection

110%-120%Rated voltage

Output Short- Circuit Protection

Output short circuit when the power will not damage for a long time, short circuit after removing the power can be restored to normal work.

Over-Temperature Protection

/

Other Functions

Environment

Working temperature & humidity

-20～+40℃@100%LOAD， +60℃@60%LOAD, 20%~90%RH

Storage temperature & humidity

-20～+85℃ , 10%~95%RH

Heat-release

Natural cooling

Safety & EMC

Safety Standard

UL 60950 Standard

Withstand Voltage

I/P-O/P： 3KV AC， 10ｍＡ，60S

Insulation Resistance

I/P-O/P： 500VAC 100ＭΩ

Reliability

MTBF

According to the MIL-HDBK-217F standards, full load, 25℃, over 30000 hours

Input output pin function of RJ-45 port

RJ-45 Input (Data Only)

RJ-45 Output (Data & Power)

Pin

Symbol

Description

Symbol

Description

1

RX+

Data Receive(+)

RX+

Data Receive(+)

2

RX-

Data Receive(-)

RX-

Data Receive(-)

3

TX+

Data Transmit(+)

TX+

Data Transmit(+)

4

BI_D3+

Bi-directional Data+

BI_D3+

DC power(+) &Bi-directional Data+

5

BI_D3-

Bi-directional Data-

BI_D3-

DC power(+) &Bi-directional Data-

6

TX-

Data Transmit(-)

TX-

Receive Data-

7

				BI_D4+

				Bi-directional Data+

				BI_D4+

DC power(-) &Bi-directional Data+

8

				BI_D4-

				Bi-directional Data-

				BI_D4-

DC power(-) &Bi-directional Data-

Dimensions&

Weight

Weight

170±20g

Dimensions

83mm*55mm*47mm

Remark

1,All the parameter values in 220 vac input, rated load, environmental temperature 25℃,70% humidity conditions is measured.

2,Precision including setting error precision, the line regulation, load regulation ,etc

3,Ripple test, through the output lines to connect the power and load,load0.1uF and 47uF capacitance in parallel, to 20M bandwidth oscilloscope measured at the load end.

4, Line regulation: under the rated, the measured input voltage changes from low to high.

5, Load regulation: measured output load from 0 to 100% measured load change.
