  • The S2018 is a 16+2G network Switch which is designed by Shenzhen Hi-Net Technology Company. It is designed for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections.

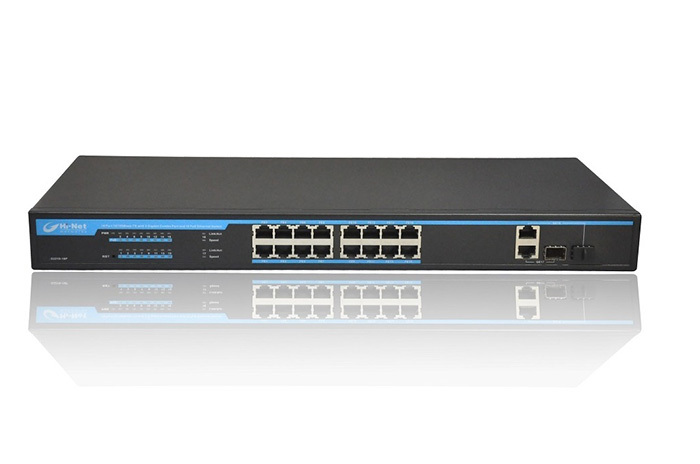

    The S2018 is 19’’ case-shaped device with 1U high. It provides 16 10/100 Base-TX ports and 2 Gigabit Combo Ports (SFP+RJ45). The S2018 can provide you an easy, economic, high-performance solution for networking, which is your ideal choice for high-speed networking.



    Product Features:

    ● IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z

    ● Provides 16 10/100Base-TX ports and 2 Gigabit Combo Ports (SFP+RJ45)

    ● 8K MAC address table

    ● High back-plane bandwidth 7.2Gbps

    ● 19’’ rack-mounted metal case

    ● Build-in industrial power supplies

    ● IEEE802.3x Flow control

    ● Surge protection for power port and data ports

    ● Plug and play, no configuration required

    ● EMI standards complies with FCC, CE class B



  • Item

    Description

    Summarize

    Fixed port

    16 10/100Base-TX ports and 2 Gigabit Combo Ports (SFP+RJ45)

    LED Indicators

    PWR, Speed, Link/Act VLAN LED.

    Input voltage

    100V240V AC50/60Hz

    Transmission Method

    Store and Forward

    Forwarding Speed

    10Mbps : 14880pps
    100Mbps : 148800pps
    1000Mbps : 1488000pps

    Power consumption

    5W

    Operating temperature

    040.

    Storage temperature

    -1070.

    Relative humidity

    20%85% (non-condensing).

    Thermal methods

    Fanless.

    Switching capacity

    7.2G.

    MAC address table

    8K.

    Traffic control

    IEEE 802.3x full-duplex flow control.

    Package

    Unit Size

    44*20*4.4cm

    Weight

    <3KG

    package

    Carton Box

    Package

    S2018 Network Switch

    User Manual

    Warranty Card

    Power Cord*1

    Rack Mount Kit*2

    Rubber Feet*4

  • S2018

    16+2G Unmanaged Network Switch
