  • Product Description:

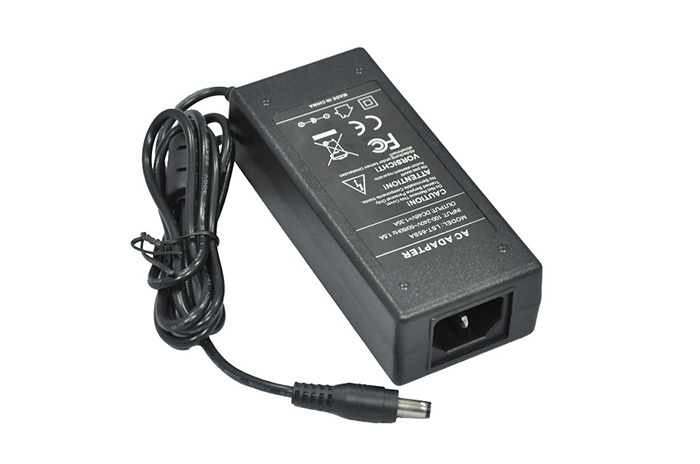

    HP-A65S series power adapter is a desktop power adapter which is independently developed by Shenzhen Hynapower Technology Co., Ltd., It has IEC320-C14AC standard power plug with an efficiency up to 87% and low standby power consumption; Class I power adapter (with Ground Pin), 94V-0 fire-resistant plastic shell, which can Effective protection against electric shock and double insulation protection. 2 pin AC standard plug, the entire series power adapters are designed for 90Vac to 260Vac full voltage range AC input, 9/12/36/48V DC output, which can meet the needs of various consumer electronic devices.
    AC wall plugs can be replaced with different country models according to customer needs, such as: CH, US, SAA, PSE,VDE..., DC output connector can be customized according to customer needs, such as: 5.5*2.1, 5.5*2.5, 4.0*1.7……


    Product Features:
        Input:90〜260VAC
        Output: 12/24/36/48V(optional)
        Output max power:65W
        Universal input voltage
        short-circuit/overload, over-voltage/over-temperature protection
        High reliability, high efficiency, LEVEL VI
        Natural cool
        100% full load aging test
        Work temperature:-10〜35℃
        IP30 plastic case
        MTBF50000 hours
        EMI:FCC Part 15. CISPR(EN55032) class B
        EMS:EN61000-4-2(ESD),EN61000-4-3(RS)
        EN61000-4-4(EFT),EN61000-4-5(Surge)
         EN61000-4-6(CS),EN61000-4-6(Common mode conduction)
        Warranty:2years

  • Input Specification

    Item

    Technical specification

    Remark

    Input Voltage Range

    90-264Vac



    Input Frequency(Hz)

    47Hz63Hz



    Input Current

    <1.5A



    Inrush Current

    20A/115Vac 30A/220Vac

    Cool Condition

    Efficiency(%)

    88%

    230Vac full load

    Power Factor

    /

    /

    Output Specification

    Model

    HP-A65S-12V

    HP-A65S -24V

    HP-A65S -36V

    HP-A65S -48V

    Output Voltage

    DC12V

    DC24V

    DC36V

    DC48V

    Output Current Range

    05A

    02.5A

    01.6A

    01.35A

    Voltage Accuracy

    ± 5.0%

    ± 5.0%

    ± 5.0%

    ± 5.0%

    Voltage Level Adjustment Range

    ± 5%

    ± 5%

    ± 5%

    ± 5%

    Output Power

    60W

    60W

    60W

    65W

    Line Regulation

    ± 1.0%

    ± 1.0%

    ± 1.0%

    ± 1.0%

    Load regulation

    ± 5%

    ± 5%

    ± 5%

    ± 5%

    Ripple & Noise

    <200mV

    <200mV

    <200mV

    <300mV

    Efficiency

    88% typ.

    88% typ.

    88 typ.

    88 typ.

    Minimum load during test

    10% of full load power

    10% of full load power

    10% of full load power

    10% of full load power

    Test conditions

    20MHz bandwidth, a 10uF electrolytic capacitor and a 0.1uF polyester capacitor are tested in parallel at  the load end.

    Safety Requirements

    Isolation Strength & Isolation Resistance



    Item

    Specification

    Isolation Strength*

     Isolation Resistance**

    Input-----Output

    3.00KVac   5ma

    100MΩ

    Input-----Ground

    2.0KVac    5ma

    100MΩ

    Output-----Ground

    0.5KVac    5ma

    100MΩ

    Remark

    *indicates the withstand voltage RatingV);Allowable maximum leakage currentmA)。**Test conditionsThe test voltage was 500VDC90%RH

    Leakage Current



    item

    Specification

    264Vac

    3.5mA





    Operational Environment

    Item

    Specification

    Temperature



    Operating Ambient

    -10~35

    Storage Environment

    -20~85

    Humidity



    Working Humidity

    20%RH~90%RH

    Storage Humidity

    10%RH~95%RH

    Heat-dissipating Method

    Natural cool

    Atmospheric Pressure

    /

    Altitude

    Under 2000M



    Other Specifications

    MTBF

    50000 hours MIL-HDBK-217F(25)

    Size

    118*52*34mmL*W*H

    Weight

    240g ±10g

    Product installation and use instructions

    1. Do not exceed the nominal value of the power supply during use, so as not to affect the reliability of the product. If you need to change the output parameters of the power supply, please consult the technical department of our company before using the power supply to ensure the use effect  and reliability.

    2. In order to ensure the safety of use and reduce interference, please ensure that the grounding terminal is reliably grounded (the grounding wire is larger than AWG18#).

    3. Our power supply is mainly suitable for resistive loads. If you need to use capacitive or inductive loads, please communicate with our marketing department before ordering to prevent inconvenience.

    If the power supply fails, please do not repair it without authorization, please contact the quality department of our company as soon as possible.

    Packaging, transportation, storage

    1 Packaging: The packaging box has the product name, model, manufacturer's logo, manufacturer's quality department inspection certificate, manufacturing date, etc.

    2 Transportation: This packaging is suitable for transportation by cars, ships, airplanes, trains, etc., during transportation, it should be sun-proof, rain-proof, and civilized loading and unloading.

    3 Storage: The product should be placed in the packaging box when not in use. The storage environment temperature and relative humidity should meet the requirements of the product. There should be no corrosive gases or products in the warehouse, and there should be no strong mechanical vibration, shock or strong magnetic field. . The packing box should be at least 20cm high from the ground, and at least 50cm away from the wall, heat source, and window air inlet. If the storage time is too long (more than 2 years), it should be re-inspected before use.



  • Model

    HP-A65S-12V

    Power adapter12V5A output

    HP-A65S-24V

    Power adapter24V2.5A output

    HP-A65S-36V

    Power adapter36V1.6A output

    HP-A65S-48V

    Power adapter48V1.35A output
