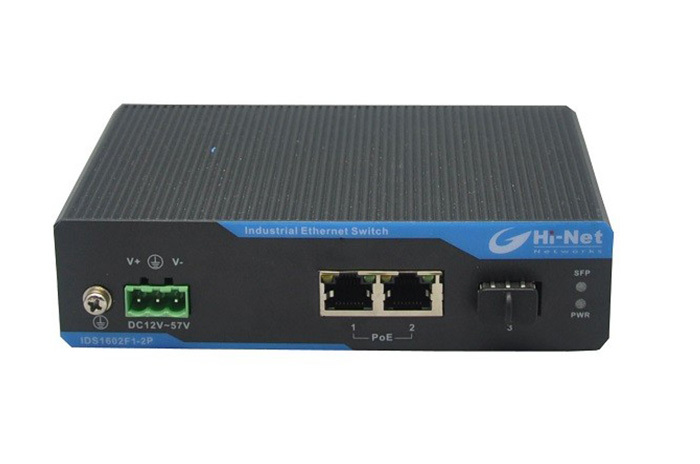

The IDS1602F1-2P series are designed for Industrial applications. Thanks to its wide operating temperature it can operate reliably in extremely harsh environments. Designed with 2x10/100/1000M RJ45 PoE ports and 1x1000Mbps SFP ports, it provides abundant and flexible connection. Finally, it contain surge protection to ensure system stability and relay outputs for greater user flexibility.
-
Speed
10/100/1000Mbps
MDI/MDIX Auto-crossover
Support straight or cross wired cables
Auto-negotiation/Duplex
10/100/1000 Mbps speed auto-negotiation; Full & Half Duplex
PoE
IEEE802.3af/at (15.4/30 Watt)
Fiber Ports
Port Types supported
100/1000 Base SFP Slot
Fiber Ports connector
LC/RJ45 connector for fiber ports
Optimal fiber cable
Typical 50 or 62.5/125 um for multimode (mm), Typical 8 or 9/125 um for single mode (sm)
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, TFTP, ARP, RARP, Telnet, Syslog,
Flow Control, Back Pressure, ICMP, UPD, TCP
Power
Power Input
Redundant Power Input, Removable Terminal Block
Input Voltage Range
44~57 VDC
Reverse Power Protection
YES
Transient Protection
>15,00 Watts peak
Power Consumption
15 Watt (Without PD Load)
Indicators
Power status indication
Power Input status
Ethernet port indication
Link & speed
Environmental and Compliances
Operating Temperature
-40 ~ 75°C (Cold startup at -40°C)
Storage Temperature
-40~85°C
Ambient Relative Humidity
10% ~ 90% RH (Non-condensing)
Certification Compliance
CE, FCC
Electrical safety
CE
EMC
FCC Part 15, ClSPR 22 (En55022) Class A , IEC-6100-4-2, -3, -4, -5, -6 (Level 3)
RoHS & WEEE
RoHS (Pb free) and WEEE Compliant
MTBF
>25 years
Mechanical
Protection
IP40
Dimensions
140 mm x 138 mm x 60 mm (W x L x H)
Ambient Relative Humidity
10% ~ 90% RH (Non-condensing)
Weight
O.9kg
Installation
DIN-Rail or Wall mounting
Relay Output
1A, 24V, Normal Open
-
Available Models
Description
10/100/1000Mb TX
100/1000 Mb FX
IDS1602F1-2P
2x10/100/1000Mbps RJ45 PoE Port and 1x1000Mbps SFP Din-rail Industrial Switch
2(2 PoE)
1
