S2218-P-V
Applied to rail transit, expressway, power station, pipe gallery project and wireless wiring project
Category:
Key words: switch
Messages- Describe
- Specifications
- Application
- Order Information
- Documentation
- Download
-
The S2218-P-V is a smart passive POE Switch device which is designed for residential building in the corridor-level broadband switching equipment. It also provide the PoE function for powering of wireless LAN (WAN) access points, IP security cameras, VoIP telephone and other low port density installations.

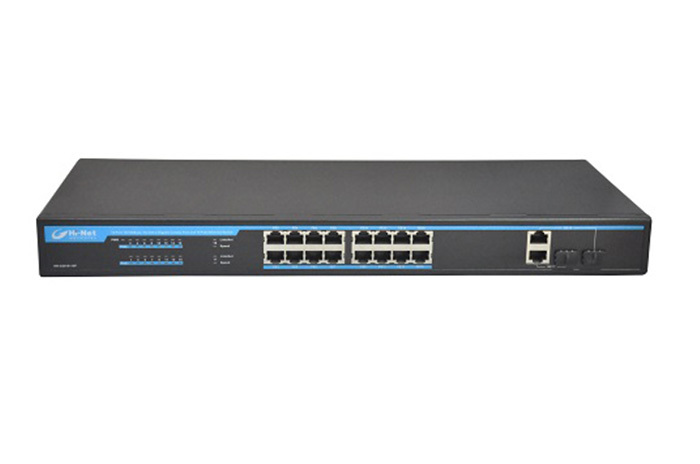

The S2218-P-V is a case-shaped device with a chassis of 1U high. It provides 16 10/100Base-TX ports and 2 combo ports (10/100/1000Base-T or 1000Base-X). It provides 8/16 Passive PoE.
Product Features:
● Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
● Provides 16 10/100Base-TX ports and 2 combo ports (10/100/1000Base-T or 1000Base-X)
● Provides 8/16 Passive PoE injector and build in AC power
● High back-plane bandwidth 7.2Gbps
● Three Optional internal power supplies: 100W/200W/300W
● Port mirror and bandwidth control
● IEEE802.3x Flow control
● Support Port Based VLAN / 802 .1Q Tag VLAN
● Support IEEE802.3ad Port trunk with LACP
● Supports IEEE 802.1p class of service
● Support Broadcast storm filter
● Support DHCP client
● Management by Web
● Surge protection for power port and data ports
● EMI standards complies with FCC, CE class A
-
Item
Description
Summarize
Fixed port
16 10/100Base-TX ports.
2 Combo ports (10/100/1000Base-T or 1000Base-X).
LED Indicators
PWR, 1000M and Link/Act LED.
Input voltage
100V～240V AC，50/60Hz
Power consumption
100W/200W/300W (90W/190W/290 for PoE).
Operating temperature
0℃～40℃.
Storage temperature
-10℃～70℃.
Relative humidity
20%～85% (non-condensing).
Thermal methods
Built-in Noiseless FAN.
PoE
PoE port
8/16 10/100Base-TX ports.
PoE Output
12VDC/24VDC/48VDC
Pin assignment
V+ (RJ45 Pin 7, 8), V- (RJ45 Pin 4, 5).
Layer 2 Switching
Switching capacity
7.2G
MAC address table
8K.
Jumbo Frame
2K.
Port Feature
Port Control.
Port Mirroring
Support.
VLAN
4K 802.1q VLANs.
Link Aggregation
Up to 3 maximum aggregation groups, each containing up to 4FE/2GE.
Traffic control
IEEE 802.3x full-duplex flow control.
Rate Limit
Unit: 64kbps.
Spanning Tree
Support STP, RSTP
Convergence
QoS
4 output queues on each port.
Scheduling Method: Strict Priority, Weighted Round Robin.
Support port-based classification.
Management
WEB
Support WEB management system.
SNMP
Support
Configuration File Download/Upload
Support Download/Upload configuration File via WEB.
Upgrade Firmware
Support Upgrade Firmware via WEB.
-
S2218-8P-12V-100
16+2G Web-Smart Switch with 8 Passive 12V PoE (100W)
S2218-8P-12V-200
16+2G Web-Smart Switch with 8 Passive 12V PoE (200W)
S2218-8P-24V-100
16+2G Web-Smart Switch with 8 Passive 24V PoE (100W)
S2218-8P-24V-200
16+2G Web-Smart Switch with 8 Passive 24V PoE (200W)
S2218-8P-48V-100
16+2G Web-Smart Switch with 8 Passive 48V PoE (100W)
S2218-8P-48V-200
16+2G Web-Smart Switch with 8 Passive 48V PoE (200W)
S2218-16P-12V-200
16+2G Web-Smart Switch with 16 Passive 12V PoE (200W)
S2218-16P-12V-300
16+2G Web-Smart Switch with 16 Passive 12V PoE (300W)
S2218-16P-24V-200
16+2G Web-Smart Switch with 16 Passive 24V PoE (200W)
S2218-16P-24V-300
16+2G Web-Smart Switch with 16 Passive 24V PoE (300W)
S2218-16P-48V-200
16+2G Web-Smart Switch with 16 Passive 48V PoE (200W)
S2218-16P-48V-300
16+2G Web-Smart Switch with 16 Passive 48V PoE (300W)
