PX201 1 In 1 Out Indoor Use Giga POE Extender, IEEE802.3at
+
  • PX201 1 In 1 Out Indoor Use Giga POE Extender, IEEE802.3at

Applied to rail transit, expressway, power station, pipe gallery project and wireless wiring project

Category:

Key words: switch

Messages
  • Describe
  • Specifications
  • Application
  • Order Information
  • Documentation
  • Download

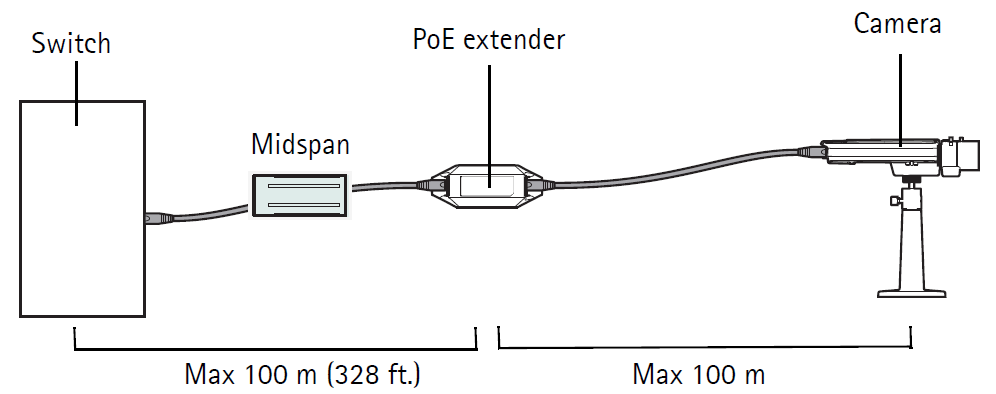

  • Ethernet and PoE connections both restrict cable distances to 100 meters between network ports. To overcome this distance limit, network installers can simply connect an PoE Extender in-line with the Cat-5e or Cat-6 calbe.



    With PoE Extender, PDs (such as IP Security Cameras, VoIP telephones, wireless access points) can be installed at greater distances than 100 meters from one another. By connecting PoE Extender for every extra 100 meters of cable, both Ethernet and PoE can be extended to 200 meters, 300 meters, or even greater distances, depending on PDs power required and power source.



    PoE Extender does not require any additional power supply and the connected PDs is fed by an single PoE switch or mid-span, which simplifies installation. PoE Extender offers two Ethernet ports, which are both configured automatically for link speed, duplex and crossover and the full-rate network throughput is main-tained.



    Product Features:

    ● Compatible with IEEE802.3af and IEEE802.3at

    ● Extends the range of PoE and Ethernet an additional 100 meters

    ● No additional power supply is required

    ● Automatically detects and protects PoE equipments from being damaged by incorrect installation

    ● Full-rate network throughout the whole extended distance

    ● Compact size, Wall-Mountable design

    ● Easy plug-and-play installation

    ● EMI standards complies with FCC, CE class B

  • Item

    Description

    No. of channels

    1

    Pass Through Data Rates

    10/100/1000 Mbps half/full duplex

    Power over Ethernet input

    Pin Assignment and Polarity:

    Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+)

    Power over Ethernet Output

    Pin Assignment and Polarity:

    1/2 (-), 3/6 (+)

    Output Power: up to 22W

    Indicators

    LED indicators are located on the RJ45 connector

    Power indicator: PoE enabled

    Network indicator:

    Connectors

    Shielded RJ-45, EIA 568A and 568B

    Network cables

    Shielded category 5 (or higher)

    Dimensions

    145mm x 60mm x 40mm

    Mounting

    Wall of shelf

    Environment

    Indoor

    Environmental Conditions

    Operating Ambient Temperature:-10 to 45

    Operating Humidity:

    Maximum 90%, Non-condensing

    Storage Temperature:-20 to 70

    Storage Humidity:

    Maximum 95%, Non-condensing

    Regulatory Compliance

    IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

    RoHS Compliant, CE, FCC

    Electromagnetic

    FCC Part15, Class B

  • a



    Maximum Distances for Power Sources



    Multiple PoE Extenders can be connected every 100 meters to obtain greater distances. The actual figures depend on operating conditions. The range is over 24 AWG or heavier Cat-5e or Cat-6 cable except where specified.



    Examples for low power PoE Devices (that are PoE Class 1, or require under 4 watts)





    PoE Source

    PoE switch (802.3af)

    15W mid-span (802.3af)

    PoE+ switch (802.3at)

    30W mid-span (802.3at)

    Maximum Distances

    400m

    400m

    500m

    500m



    Examples for medium power PoE Devices (that are PoE Class 2, or require under 6 watts)



    PoE Source

    PoE switch (802.3af)

    15W mid-span (802.3af)

    PoE+ switch (802.3at)

    30W mid-span (802.3at)

    Maximum Distances

    300m

    300m

    400m

    400m



    Examples for full power PoE Devices (that are PoE Class 0 or 3, or require under 12 watts)



    PoE Source

    PoE switch (802.3af)

    15W mid-span (802.3af)

    PoE+ switch (802.3at)

    30W mid-span (802.3at)

    Maximum Distances

    200m

    200m

    300m

    300m



    Examples for PoE+ Devices (that are PoE Class 4 that under 22 watts, or 802.3at compliant)



    PoE Source

    PoE switch (802.3af)

    15W mid-span (802.3af)

    PoE+ switch (802.3at)

    30W mid-span (802.3at)

    Maximum Distances

    Not applicable

    Not applicable

    200m

    200m





  • PX201

    indoor use Gigabit POE extender


Previous

Next
