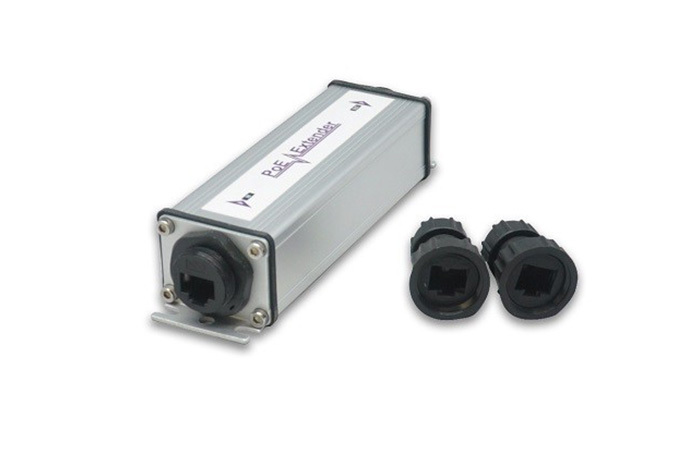

IPX101 is an IP65 water-proof standard 10/100M POE extender which is designed based on IEEE802.3at standard. The input port is based on IEEE802.3at standard, the max input power is around 26W. The output two port is fit the IEEE802.3af and IEEE802.3at standard, the output power is 25W max per port. With the IP65 water-proof case and connectors design, this product is mainly used for the outdoor long distance solutions like the IPC, AP, VOIP etc. This product all Ports can optional support 6KV surge protection. Based on those unique design, it will make your long-distance solution “ Easy” “Stable” and “Variety”.



Product Features:

● IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

● One PoE Input (PD port) and one PoE output (PSE ports)

● 10/100M Base-T Ports

● Extends the range of PoE and Ethernet an additional 100 meters.

● No additional power supply is required.

● Automatically detects and protects PoE equipment from being damaged by incorrect installation.

● Full-rate network throughout the whole extended distance.

● Compact size, Wall-Mountable design.

● Easy plug-and-play installation.

● IP65 Aluminum case

● CE class A, LVD, FCC, ROHS 2.0

We could not find any corresponding parameters, please add them to the properties table

Item

Description

No. of channels

1

Pass Through Data Rates

10/100 Mbps half/full duplex

Power over Ethernet input

Pin Assignment and Polarity:

Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+)

Power over Ethernet Output

Pin Assignment and Polarity:

1/2 (-), 3/6 (+)

Output Power: up to 22W

Connectors

Shielded RJ-45, EIA 568A and 568B

Network cables

Shielded category 5 (or higher)

Dimensions

140mm x 40mm x 30mm

Mounting

Wall of shelf

Environment

Outdoor IP65

Environmental Conditions

Operating Ambient Temperature:-40 to 75

Operating Humidity:

Maximum 90%, Non-condensing

Storage Temperature:-40 to 75

Storage Humidity:

Maximum 95%, Non-condensing

Regulatory Compliance

IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

RoHS Compliant, CE, FCC

Electromagnetic

FCC Part15, Class B

Maximum Distances for Power Sources



Multiple PoE Extenders can be connected every 100 meters to obtain greater distances. The actual figures depend on operating conditions. The range is over 24 AWG or heavier Cat-5e or Cat-6 cable except where specified.



Examples for low power PoE Devices (that are PoE Class 1, or require under 4 watts)



PoE Source

PoE switch (802.3af)

15W mid-span (802.3af)

PoE+ switch (802.3at)

30W mid-span (802.3at)

Maximum Distances

400m

400m

500m

500m



Examples for medium power PoE Devices (that are PoE Class 2, or require under 6 watts)



PoE Source

PoE switch (802.3af)

15W mid-span (802.3af)

PoE+ switch (802.3at)

30W mid-span (802.3at)

Maximum Distances

300m

300m

400m

400m



Examples for full power PoE Devices (that are PoE Class 0 or 3, or require under 12 watts)



PoE Source

PoE switch (802.3af)

15W mid-span (802.3af)

PoE+ switch (802.3at)

30W mid-span (802.3at)

Maximum Distances

200m

200m

300m

300m



Examples for PoE+ Devices (that are PoE Class 4 that under 22 watts, or 802.3at compliant)



PoE Source

PoE switch (802.3af)

15W mid-span (802.3af)

PoE+ switch (802.3at)

30W mid-span (802.3at)

Maximum Distances

Not applicable

Not applicable

200m

200m



Models

IPX101

IP65 1 in 1 out 10/100M PoE Extender

IPX101HV

IP65 1 in 1 out 10/100M PoE Extender, with ports 6KV surge protection
