PX202-bt
Applied to rail transit, expressway, power station, pipe gallery project and wireless wiring project
Category:
Key words: switch
Messages- Describe
- Specifications
- Application
- Order Information
- Documentation
- Download
-

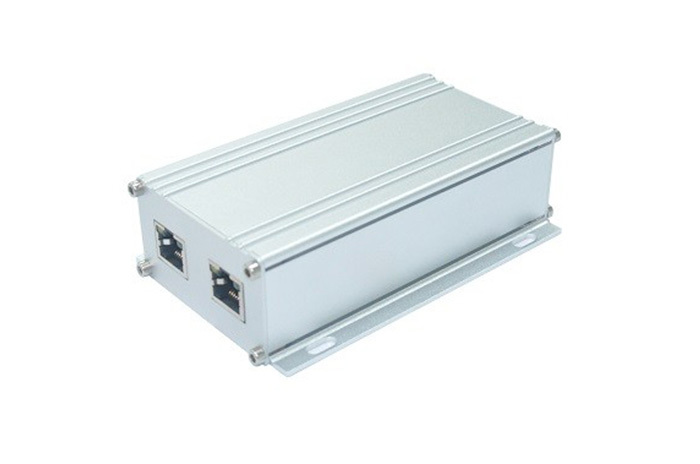

PX202-bt is an enhanced version Gigabit POE extender which is designed based on the new standard IEEE802.3bt standard. The input port is based on IEEE802.3 bt standard, and the Max input power is around 75W. The output two ports also fit the IEEE802.3bt standard, the output power is 70W max per port. All three ports fit IEE802.3at and IEEE802.3af standard. Based on 802.3bt input and 802.3bt output technology, this product is mainly used for the big power solutions like the PTZ, AP etc. This product all Ports support 6KV surge protection. Based on those unique design, it will make your long-distance solution “ Easy” “Stable” and “Variety”.
Product Features：
● IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
● One PoE Input (PD port) and Two PoE output (PSE ports)
● 10/100/1000M Base-T Ports
● Extends the range of PoE and Ethernet an additional 100 meters.
● No additional power supply is required.
● Automatically detects and protects PoE equipment from being damaged by incorrect installation.
● Full-rate network throughout the whole extended distance.
● Compact size, Wall-Mountable design.
● Easy plug-and-play installation.
● Aluminum case
● CE class A, LVD, FCC, ROHS 2.0
-
Power over Ethernet
PoE Interfaces
1 x RJ-45 Connector for 802.3af/at/bt Power input
2 x RJ-45 Connector for 802.3af/at Power output
PoE Standard
IEEE802.3af, IEEE802.3at, IEEE802.3bt
Input PoE Voltage
44~57VDC
Input PoE Pin Assignment
V+ (RJ45 Pin3,6), V- (RJ45 Pin 1,2) and V+ (RJ45 Pin4,5), V- (RJ45 Pin 7,8)
Output PoE Wattage
≥65W
Output PoE Pin Assignment
V+ (RJ45 Pin3,6), V- (RJ45 Pin 1,2) and V+ (RJ45 Pin4,5), V- (RJ45 Pin 7,8)
Power cost
≤5W
Physical
Dimensions
170 x 78 x 35mm
Weight
0.5KG
Operating Temperature
-40 to 75℃
Storage Temperature
-40 to 85℃
Operating Humidity
5 to 95% Noncondensing
Ingress Protection Level
IP30
Electromagnetic
Emission & Immunity
FCC (Part15, Class A)
CE (EN55022/24)
Safety Approvals
CE/LVD (EN60950-1)
ROHS
ROHS 2.0
Package List
PoE Extender
1pcs
User Manual
1pcs
-
-
Models
PX202-bt
2 Ports Outdoor Gigabit PoE Extender
-
