• S1505G-4P

Applied to rail transit, expressway, power station, pipe gallery project and wireless wiring project


Key words: switch

  • Describe
  • Specifications
  • Application
  • Order Information
  • Documentation
  • Download

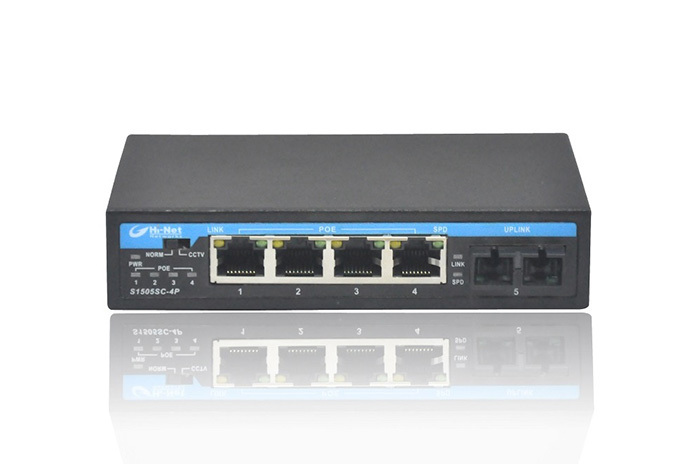

  • S1505G-P is 5 ports 10/100M POE Switch designed for the CCTV field by Shenzhen Hi-Net Technology Company. It provides 4 10/100Mbps Auto-Negotiation RJ45 ports, 1 100M fiber port and 4 ports with POE function (Port 2-5), the POE ports support full POE standard: IEEE802.3af and IEEE802.3at. The product supports one key CCTV mode, open it, the switch can achieve VLAN after configuration, control the Net storm, protect the information security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs. And also it can extend the transport distance to 250M by the 10M data under the CCTV mode.


    It has three optional power supplies for your choice (65W, 96W, 135W, can choose from the order list). Extend Function: Port Lightning protection, Power lightning protection.


    Products Features:

    ● IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

    ●  Provides 4 10/100Base-TX ports and one 100M fiber port (Can be SFP or SC fiber)

    ● 4 POE Ports (Ports 2-5), Each POE port output 30W max power

    ● One key CCTV mode; 2~5 downlink ports can only communicate with uplink ports

    ● One key CCTV mode: The transport distance will support 250M under 10M

    ● High back-plane bandwidth 1Gbps

    ● Reliable Power Adapter supply power for both network switch and POE

    ● Three optional power adapters: 65W, 96W, 135W

    ● 1K entry MAC address table of the PoE switch with auto-learning and auto-aging

    ● IEEE802.3x Flow control for Full-duplex Mode and backpressure for Half-duplex Mode

    ● Surge protection for power port and data ports

    ● Supports PoE IEEE 802.3af or IEEE802.3at compliant Powered Device (PD)

    ● Compact metal case for desktop or wall-mounting.

    ● EMI standards complies with FCC, CE class B

  • Item



    Fixed port

    4 10/100Base-TX ports and one 100M fiber port (Can be SFP or SC fiber)

    POE Port

    4 PoE ports (Port 2-5)

    LED Indicators

    PWR, PoE, Link/Act LED.

    Input voltage

    100V240V AC50/60Hz (for power adapter)

    48VDC (for switch)

    Network Media

    10BASE-TX: UTP category 5, 5e cable (≤250m)
    100BASE-TX: UTP category 5, 5e cable (≤150m)

    Uplink Fiber Port: Single Fiber 20KM, Double Fiber: 20Km

    Forwarding Rate

    10BASE-T: 14880pps/port
    100BASE-TX: 148800pps/port

    Power Supplies

    65W,96W,135W Optional

    Operating temperature


    Storage temperature


    Relative humidity

    20%85% (non-condensing).

    Thermal methods


    Switching capacity


    MAC address table


    Traffic control

    IEEE 802.3x full-duplex flow control.

    Package Size





    S1505G-P POE switch

    User Manual

    Warranty Card

    Power Adapter

    Power Cable


    PoE port

    4 10/100Base-TX ports.

    PoE Standard

    IEEE802.3af, IEEE802.3at, per port 15.4W,max 30W

    Pin assignment

    V+ (RJ45 Pin 3, 6), V- (RJ45 Pin 1, 2).

    Extend Function

    Port Lightning protection, Power lightning protection, solid vlan.

  • S1505G-4P-65W

    5 ports network Switch with 4 PoE Ports(Total Power 65W)


    5 ports network Switch with 4 PoE Ports(Total Power 96W)


    5 ports network Switch with 4 PoE Ports(Total Power 135W)
