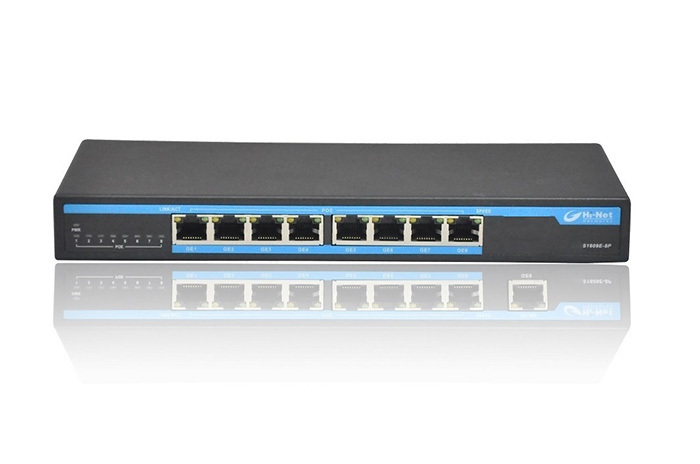

The S1608E-P is a Small size 8 ports gigabit dump POE switch with anti-loop function which is designed by Hi-Net Technology Company. It provides 8 10/100/1000Mbps Auto-Negotiation RJ45 ports. All 8 ports support Auto MDI/MDIX functions which include 4 or 8 ports with POE function. The POE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.

The S1608E-P is a small size metal-shell device which is useful for the small office, home and the IP solution project using. All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max. Three optional power supplies for your choice (65W, 96W, 135W, can choose from the order list).

Product Features:

● IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

● Provides 8 10/100/1000Base-TX ports

● 4 or 8 POE ports, Each POE port output 30W max power

● High back-plane bandwidth 16Gbps

● Reliable Power Adapter supply power for both network switch and POE

● Three optional power adapters: 65W, 96W, 135W

● IEEE802.3x Flow control for Full-duplex Mode and backpressure for Half-duplex Mode

● Surge protection for power port and data ports

● Supports IEEE 802.3af and IEEE802.3at compliant Powered Device (PD)

● 4K entry MAC address table of the PoE switch with auto-learning and auto-aging

● Small size metal case for the POE switch

● Solid-Vlan

● Auto Loop detection, cut off Loop port Auto

● Pin Feet: V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6)

Item	Description
Summarize
Fixed port	8 10/100/1000Base-TX ports.
POE Ports	All 8 POE ports or 4 POE ports( Port 5-8)
LED Indicators	PWR, PoE, Link/Act LED.
Input voltage	100V～240V AC，50/60Hz (for power adapter) 48VDC (for switch)
Network Media	10BASE-TX: UTP category 5, 5e cable (≤250m) 100BASE-TX: UTP category 5, 5e cable (≤150m) 1000BASE-TX: UTP category 5, 5e cable (≤150m)
Forwarding Rate	10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 1000BASE-TX: 148800pps/port
Power Supplies	65W,96W,135W Optional
Operating temperature	0℃～40℃.
Storage temperature	-10℃～70℃.
Relative humidity	20%～85% (non-condensing).
Thermal methods	Fanless.
Switching capacity	16G.
MAC address table	4K.
Traffic control	IEEE 802.3x full-duplex flow control.
Anti-Loop	Anti-Loop function, cut off the loop port auto
Vlan	Solid Vlan
Weight	<2 Kg
Package	S1608E-P POE switch User Manual Power Adapter Power Cable Warranty Card
PoE
PoE port	4/8 10/100/1000Base-TX ports.
PoE Standard	IEEE802.3af, IEEE802.3at, per port 15.4W, max 30W
Pin assignment	V+ (RJ45 Pin1, 2), V- (RJ45 Pin 3, 6).
Extend Function	Power lightning protection, solid vlan.

S1608E-4P-65W	8 ports Gigabit Switch with 4 PoE Ports(Total Power 65W)
S1608E-8P-65W	8 ports Gigabit Switch with 8 PoE Ports(Total Power 65W)
S1608E-8P-96W	8 ports Gigabit Switch with 8 PoE Ports(Total Power 96W)
S1608E-8P-135W	8 ports Gigabit Switch with 8 PoE Ports(Total Power 135W)
