S1609-P

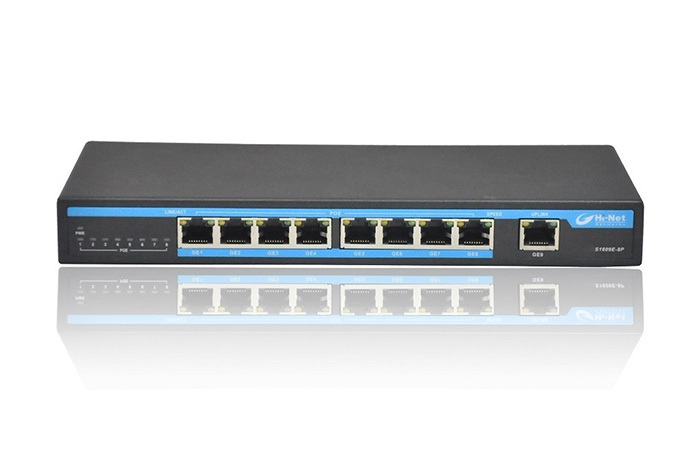

8 Ports 10/100/1000M POE Switch With 1G RJ45 Ports Uplink
Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Features
Specifications
Application
Order Information
Documentation
Download

The S1609-P is a useful 9 ports Gigabit POE switch with a gigabit SFP uplink port which is designed based on Broadcom Chipset by Shenzhen Hi-Net Technology Company. It provides 9 10/100/1000M RJ45 Ports and 4 or 8 PoE Ports. The POE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.



The S1609-P is a small size metal-shell device which is useful for the small office, home and the IP solution project using. All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max. Three optional power supplies for your choice (65W, 96W, 135W, can choose from the order list). Extend Function: Port Lightning protection, Power lightning protection, solid vlan.



Product Features:

● IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

● Provides 9 10/100/1000Base-TX ports

● Provides 4 or 8 PoE Port, each port output 30W max power

● Reliable Power Adapter supply power for both network switch and POE

● Three optional power adapters: 65W, 96W, 135W

● 4K entry MAC address table of the PoE switch with auto-learning and auto-aging

● High back-plane bandwidth 1.8Gbps

● IEEE802.3x Flow control for Full-duplex Mode and backpressure for Half-duplex Mode

● Surge protection for power port and data ports

● Compact metal case for desktop or wall-mounting

● EMI standards complies with FCC, CE class B

● Extend Function: Port Lightning protection, Power lightning protection, solid vlan.



We could not find any corresponding parameters, please add them to the properties table

Item

Description

Summarize

Fixed port

9 10/100/1000Base-TX ports.

POE Port

8 POE Ports(1-8 Port) or 4 POE ports(1-4 Port)

LED Indicators

PWR, PoE, Link/Act LED.

Input voltage

100V~240V AC,50/60Hz (for power adapter)

48VDC (for PoE switch)

Network Standard

IEEE 802.3 10Base-T,

IEEE 802.3u 100Base-TX,

IEEE 802.3x Flow Control,

IEEE 802.3az

Network Media

10BASE-TX: UTP category 5, 5e cable (≤250m)
100BASE-TX: UTP category 5, 5e cable (≤150m)

1000BASE-TX: 148800pps/port

Power Supplies

65W,96W,135W Optional

Operating temperature

0℃~40℃.

Storage temperature

-10℃~70℃.

Relative humidity

20%~85% (non-condensing).

Thermal methods

Fanless.

Switching capacity

18G.

MAC address table

4K.

Traffic control

IEEE 802.3x full-duplex flow control.

Size

205*122*33.5cm

Weight

<2KG

Package

S1609-P POE switch

User Manual

Power Adapter

Power Cable

Warranty Card

PoE

PoE port

4/8 10/100/1000Base-TX ports.

PoE Standard

IEEE802.3af, IEEE802.3at, per port15.4W and 30W(MAX),

Pin assignment

V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6).

Extend Function

Port Lightning protection, Power lightning protection, solid vlan.

S1609-4P-65W

9 ports Gigabit Switch with 4 PoE Ports (Total 65W Power)

S1609-8P-65W

9 ports Gigabit Switch with 4 PoE Ports (Total 65W Power)

S1609-8P-96W

9 ports Gigabit Switch with 8 PoE Ports (Total 96W Power)

S1609-8P-135W

9 ports Gigabit Switch with 8 PoE Ports (Total 135W Power)
