• S2010D-P

Applied to rail transit, expressway, power station, pipe gallery project and wireless wiring project


Key words: switch

  • Describe
  • Specifications
  • Application
  • Order Information
  • Documentation
  • Download

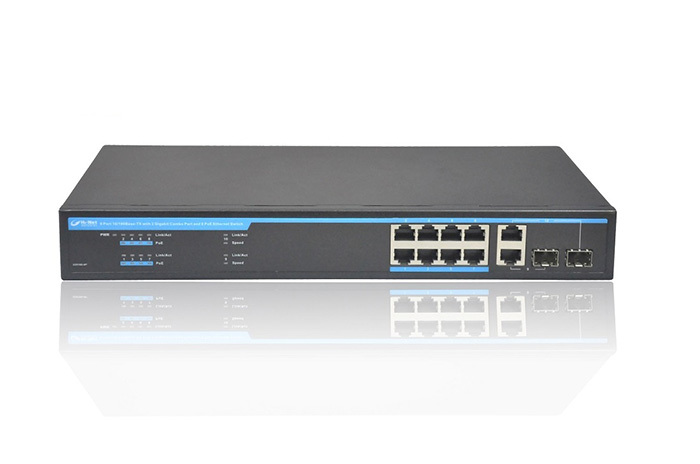

  • The S2010D-P is a 8 ports 10/100M and two Gigabit Uplink Combo Ports desktop POE Switch which is designed by Shenzhen Hi-Net Technology Company. It is used for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections. It provides 8 10/100Mbps Auto-Negotiation RJ45 ports, 2 Gigabit Combo Ports (SFP+RJ45) and 8 POE ports. The POE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.


    The S2010D-P is a 13’’ case-shaped device with 1U high. It is with the internal industrial power supplies, have two optional power supplies—150W, 270W. All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max.


    Product Features:

    ● IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

    ● Provides 8 10/100Base-TX ports, 2 Gigabit Combo Ports (SFP+RJ45)

    ● Provides 8 PoE ports, Each POE port output 30W max power

    ● Build in power supplies, optional 150W or 270W

    ● High back-plane bandwidth 5.6Gbps

    ● 4K entry MAC address table of the PoE switch with auto-learning and auto-aging

    ● IEEE802.3x Flow control

    ● Surge protection for power port and data ports

    ● 19’’ rack-mounted size metal case for the POE switch

    ● Pin Feet: V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6)

    ● EMI standards complies with FCC, CE class B

    ● Extend Function: Power lightning protection, solid vlan.

  • Item



    Fixed port

    8 10/100Base-TX ports. 2 Gigabit Combo Ports( SFP+RJ45)

    LED Indicators

    PWR, PoE, Link/Act LED.

    Input voltage

    100V240V AC50/60Hz

    Network Media

    10BASE-TX: UTP category 5, 5e cable (≤250m)
    100BASE-TX: UTP category 5, 5e cable (≤150m)

    1000BASE-TX: UTP category 5, 5e cable (≤150m)

    Uplink Fiber Port: Single Fiber 20KM, Double Fiber: 20Km

    Forwarding Rate

    10BASE-T: 14880pps/port
    100BASE-TX: 148800pps/port

    1000BASE-TX: 148800pps/port

    Power Supplies

    150W, 270W Optional

    Operating temperature


    Storage temperature


    Relative humidity

    20%85% (non-condensing).

    Thermal methods

    Built-in Noiseless FAN.

    Switching capacity


    MAC address table


    Traffic control

    IEEE 802.3x full-duplex flow control.


    <3 Kg


    S2010D-P POE switch

    User Manual

    Power Cable

    Warranty Card


    PoE port

    8 10/100Base-TX ports.

    PoE Standard

    IEEE802.3af, IEEE802.3at, per port 15.4W, max 30W

    Pin assignment

    V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6).

  • S2010D-8P-150W

    8+2G network Switch with 8 PoE ports (Total power 150W)


    8+2G network Switch with 8 PoE ports (Total power 270W)
