S1005
+
  • S1005

Applied to rail transit, expressway, power station, pipe gallery project and wireless wiring project

Category:

Key words: switch

Messages
  • Describe
  • Specifications
  • Application
  • Order Information
  • Documentation
  • Download

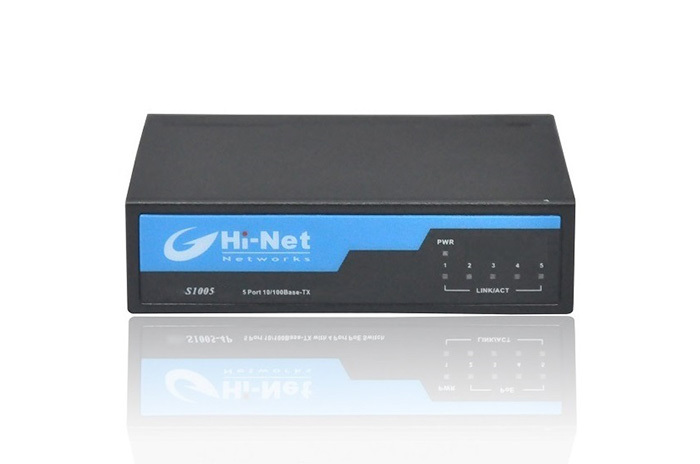

  • The S1005 is a low-cost desktop 5 ports 10/100M network switch which is designed by Hi-Net Technology Company. It provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.



    The S1005 is a metal-shell device which is useful for the small office and home using.



    Products Features:

    ● IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z

    ● Provides 5 10/100Base-TX ports

    ● High back-plane bandwidth 1Gbps

    ● 1K MAC address table

    ● Reliable Power Adapter

    ● IEEE802.3x Flow control

    ● Surge protection for power port and data ports

    ● Plug and play, no configuration required

    ● EMI standards complies with FCC, CE class B

  • Item

    Description

    Summarize

    Fixed port

    5 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

    Forwarding Rate

    10BASE-T: 14880pps/port

    100BASE-TX: 148800pps/port

    Basic Function

    full duplex wire-speed forwarding

    MAC Address Auto-Learning and Auto-updating

    IEEE802.3x flow control for Full-Duplex Mode and 802.3z asymmetric flow Control

    Network Media



    10Base-T: UTP category 3, 4, 5 cable (maximum 100m)

    EIA/TIA-568 100Ù STP (maximum 100m)

    100Base-Tx: UTP category 5, 5e cable (maximum 100m)

    EIA/TIA-568 100Ù STP (maximum 100m)

    LED Indicators

    PWR, Link/Act

    Power Supply

    AC Power adaptor 12V 0.5A

    Operating temperature

    0℃~40

    Storage temperature

    -40℃~70.

    Operating Humidity

    10%~90% non-condensing

    Storage Humidity

    5%~90% non-condensing

    Relative humidity

    20%85% (non-condensing).

    Thermal methods

    Fanless.

    Switching capacity

    1G.

    MAC address table

    1K.

    Traffic control

    IEEE 802.3x full-duplex flow control.

    Size

    9.2*6.9*2.5cm

    Packing Size

    19.1*14.1*6.4cm

    Unit weight

    350g

    Package

    S1005 Network Switch

    User Manual

    Power Adapter

    Warranty Card


  • S1005

    5 ports 10/100M Network Switch
