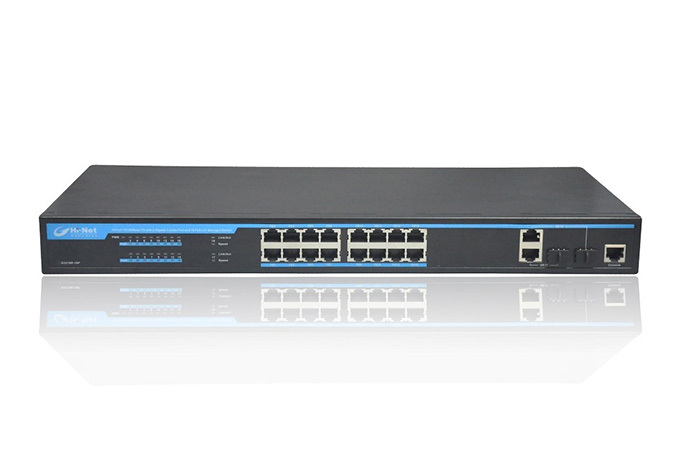

The S2318 is a 16+2G Full Managed Network Switch which is designed for the new generation Ethernet intelligent access by Shenzhen Hi-Net Technology Company. It is mainly deployed on the IP MAN and intranets, meeting requirements the requirements of carrying various Ethernet services and accessing the Ethernet. This model is designed by Broadcom Chipset and with the managed way by: web, telnet, SNMP and CLI.
The S2318 is a case-shaped device with 1U high. It provides 16 10/100Base-TX ports and 2 combo ports (10/100/1000Base-T or 1000Base-X). This model provides an economical solution for network accessing layer with small-middle sized enterprise, schools and hotels, etc.
Product Features:
● IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
● Provides 16 10/100Base-TX ports and 2 combo ports (10/100/1000Base-T or 1000Base-X)
● High back-plane bandwidth 7.2Gbps
● IGMP snooping and IGMP Query mode for Multi-media application
● Port mirror and bandwidth control
● Supports GVRP function
● IEEE802.3x Flow control
● Support Port Based VLAN / 802 .1Q Tag VLAN
● Support IEEE802.3ad Port trunk with LACP
● Support Spanning tree protocol IEEE 802.1d
● Supports IEEE 802.1p class of service
● Support IEEE 802.1x user authentication
● Support Broadcast storm filter
● Support DHCP server and client
● Support System event log
● Support command line interface management
● Management by Web/SNMP/Telnet/Console
● Surge protection for power port and data ports
● EMI standards complies with FCC, CE class B
-
Item
Description
Summarize
Fixed port
16 10/100Base-TX ports.
2 Combo ports (10/100/1000Base-T or 1000Base-X).
1 Console port.
LED Indicators
PWR, Speed and Link/Act LED.
Input voltage
100V~240V AC,50/60Hz
Power consumption
15W.
Operating temperature
0℃~40℃.
Storage temperature
-10℃~70℃.
Relative humidity
20%~85% (non-condensing).
Thermal methods
Fanless.
Layer 2 Switching
Switching capacity
7.2G
MAC address table
8K, Support MAC address table management.
MAC Address Binding
Support.
MAC Address Filtering
Support.
MAC Address Learning control
Control number of port-based MAC address learning.
Jumbo Frame
2K.
Port Feature
Port Control.
Port Isolation.
Port Self-loop Detection.
Port Mirroring
Support.
VLAN
4K 802.1q VLANs, Support Ingress filter.
Link Aggregation
Up to 2 maximum aggregation groups, each containing up to 4FE/2GE.
Traffic control
IEEE 802.3x full-duplex flow control.
Rate Limit
Unit: 64kbps.
Spanning Tree
IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Ring Protocol
Support EAPS.
Multicast
Support 256 Multicast groups.
Support IGMP Snooping.
Layer 3 Switching
Static ARP
Support.
Static Routing
Support.
L3 VLAN interface
Up to 32 L3 VLAN Interface.
Convergence
QoS
4 output queues on each port.
Support flexible queue scheduling algorithms: WRR, Q+WRR.
Support port-based / MAC-based / 802.1p / DSCP classification.
Security
Security Features
Support MAC-based 802.1X authentication.
Support AAA/RADIUS authentication.
Support WEB/Telnet password protection.
Support Accessing privilege mode password protection.
Self-protection
Support CPU Self-protection.
Management
CLI
Support CLI (Commend Line Interface) configuration mode.
Console
Support Configuration via the console port.
Telnet
Support Local/remote configuration via Telnet.
WEB
Support WEB management system.
SNMP
Support System configuration with SNMP v1/v2/v3.
User Management
Support Multi-user management.
System Log
Support.
Configuration File Download/Upload
Support Download/Upload configuration File via WEB/TFTP.
Upgrade Firmware
Support Upgrade Firmware via WEB/TFTP/Console.
Debug
PING
Support.
TRACEROUTE
Support.
Telnet client
Support.
Process View
Support.
Package
Unit Size
44*20*4.4cm
Weight
2.5KG
package
Carton Box
Package
S2318 Network Switch
User Manual
Power Cord*1
Rack Mount Kit*2
Rubber Feet*4
Warranty Card
-
S2318
16+2G Managed Ethernet Switch
