Applied to rail transit, expressway, power station, pipe gallery project and wireless wiring project
Key words: switchMessages
- Order Information

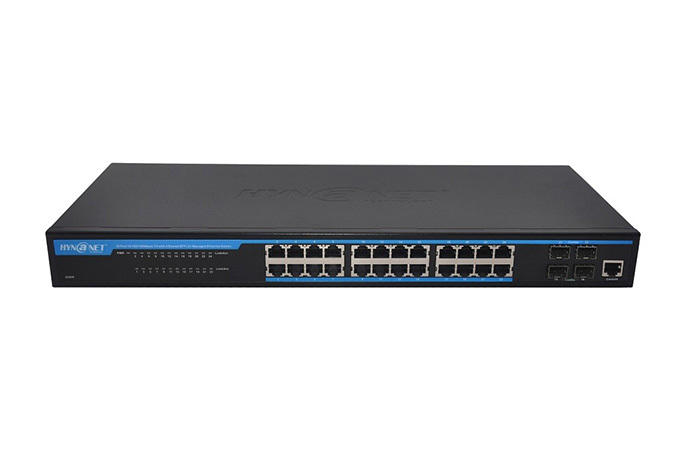

The S2928 is a 24 Ports Full Managed Network switch with 4 Shared Gigabit SFP ports which is designed by Shenzhen Hi-Net Technology Company. It is used as new generation Ethernet intelligent access switch. It is mainly deployed on the IP MAN and intranets, meeting requirements the requirements of carrying various Ethernet services and accessing the Ethernet. This model is designed by Broadcom Chipset and with the managed way by: web, telnet, SNMP and CLI.
The S2928 is a 19’’ case-shaped device with 1U high. It provides 24 10/100/1000Base-TX ports and 4 1000Base-X SFP shared ports. This model provides an economical solution for network accessing layer with small-middle sized enterprise, schools and hotels, etc.
● IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
● Provides 20 10/100/1000Base-TX ports and 4 combo ports (10/100/1000 Base-T or 1000Base-X)
● High back-plane bandwidth 48Gbps
● Support standard IP/ Extend IP / MAC IP / ARP ACL
● IGMP snooping and IGMP Query mode for Multi-media application
● Port mirror and bandwidth control
● Supports GVRP function
● IEEE802.3x Flow control
● Support Port Based VLAN / 802 .1Q Tag VLAN
● Support IEEE802.3ad Port trunk with LACP
● Support Spanning tree protocol IEEE 802.1d
● Supports IEEE 802.1p class of service
● Support IEEE 802.1x user authentication
● Support Broadcast storm filter
● Support DHCP server and client
● Support System event log
● Support command line interface management
● Management by Web/SNMP/Telnet/Console
● Surge protection for power port and data ports
● EMI standards complies with FCC, CE class B
20 10/100/1000Base-TX ports.
4 Combo ports (10/100/1000Base-T or 1000Base-X).
1 Console port.
PWR, Speed and Link/Act LED.
Built-in Noiseless FAN.
Layer 2 Switching
MAC address table
8K, Support MAC address table management.
MAC Address Binding
MAC Address Filtering
MAC Address Learning control
Control number of port-based MAC address learning.
Jumbo packets up to 16379 bytes.
Port Self-loop Detection.
4K 802.1q VLANs, Support Ingress filter.
Up to 8 maximum aggregation groups, each containing up to 8 GE ports.
IEEE 802.3x full-duplex flow control.
IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Support 256 Multicast groups.
Support IGMP Snooping.
Layer 3 Switching
L3 VLAN interface
Up to 32 L3 VLAN Interface.
4 output queues on each port.
Support flexible queue scheduling algorithms: WRR, Q+WRR.
Support port-based / MAC-based / 802.1p / DSCP classification.
Support Standard IP / Extend IP / MAC IP / ARP
Support 512 entries
Support MAC-based 802.1X authentication.
Support AAA/RADIUS authentication.
Support WEB/Telnet password protection.
Support Accessing privilege mode password protection.
Support CPU Self-protection.
Support CLI (Commend Line Interface) configuration mode.
Support Configuration via the console port.
Support Local/remote configuration via Telnet.
Support WEB management system.
Support System configuration with SNMP v1/v2/v3.
Support Multi-user management.
Configuration File Download/Upload
Support Download/Upload configuration File via WEB/TFTP.
Support Upgrade Firmware via WEB/TFTP/Console.
Rack Mount Kit*2
24G Managed Gigabit Ethernet Switch
