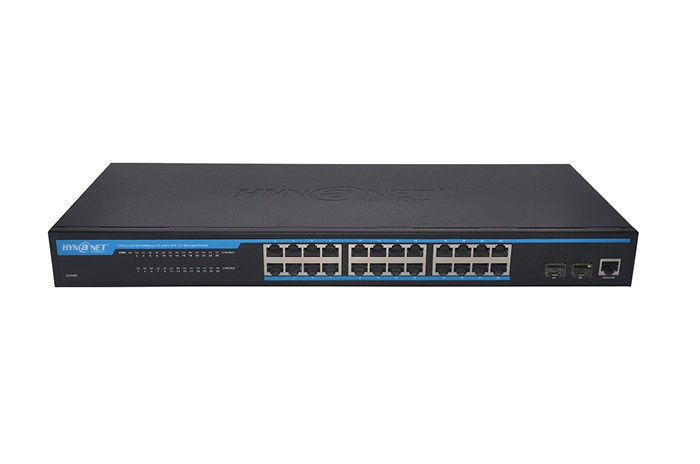

The S2926R is a 26G Full Managed POE switch which is designed by Shenzhen Hi-Net Technology Company. It provides 24 10/100/1000Mbps Auto-Negotiation RJ45 ports, 2 Gigabit SFP Ports. Support web, telnet, SNMP and CLI managed interface. The S2926R is a 19’’ case-shaped device with 1U high.
Product Features:
● IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
● Provides 24 10/100/1000 Base-TX ports and 2 1000Base-X SFP ports
● High back-plane bandwidth 52Gbps
● Support standard IP/ Extend IP / MAC IP / ARP ACL
● IGMP snooping and IGMP Query mode for Multi-media application
● Port mirror and bandwidth control
● Supports GVRP function
● IEEE802.3x Flow control
● Support Port Based VLAN / 802 .1Q Tag VLAN
● Support IEEE802.3ad Port trunk with LACP
● Support Spanning tree protocol IEEE 802.1d
● Supports IEEE 802.1p class of service
● Support IEEE 802.1x user authentication
● Support Broadcast storm filter
● Support System event log
● Support command line interface management
● Management by Web/SNMP/Telnet/Console
-
Item
Description
Summarize
Fixed port
24 10/100/1000Base-TX ports.
2 1000M SFP ports
1 Console port.
LED Indicators
PWR, Link/Act LED.
Input voltage
100V～240V AC,50/60Hz
Network Media
10BASE-TX: UTP category 5, 5e cable (≤250m)
100BASE-TX: UTP category 5, 5e cable (≤150m)1000BASE-TX: UTP category 5, 5e cable (≤150m)
Forwarding Rate
10BASE-T: 14880pps / port
100BASE-TX: 148800pps / port1000BASE-TX: 148800pps / port
Power consumption
20W
Operating temperature
0℃～40℃.
Storage temperature
-10℃～70℃.
Relative humidity
20%～85% (non-condensing).
Layer 2 Switching
Switching capacity
52G
Port configuration
Enable and disable
Support
Port Auto-Negotiation
Support force port mode and speed
Flow control
Support IEEE 802.3x full-duplex flow control
Support half-duplex backpressure flow control
Support Broadcast storm filter
and DLF package rate limit
Broadcast storm filter
Support respectively testing the port’s broadcast packets, multicast and unicast packets, and close the port when exceeds the valve-value
Port Mirroring
Support
Port rate limit
Support Port input and output rate limit
Link Aggregation
Support manual Link Aggregation
Support LACP dynamic Link Aggregation
Up to 8 maximum aggregation groups, each containing up to 8 ports
Support Source MAC, Destination MAC, Source Destination MAC, Source IP, Destination IP, Source Destination IP routing strategy
Port Protection
Each port can be configured into isolated protected port from each other
Jumbo Frame
Support, Jumbo packets up to 10K bytes.
Testing of cable distance
Support
MAC configuration
MAC address table
8K
MAC address table management
Support
Transfer Mode
Support IVL transfer mode
Static MAC address
Support
MAC binding
Support
MAC Address filter
Support
MAC Address Learning control
Limit the number of MAC-addresses Learning per port.
VLAN configuration
VLAN quantity
4K
VLAN based on 802.1q
Support
MAC-based VLAN
Support
IP-based VLAN
Support
VLAN based on protocol
Support
Voice VLAN
Support
VLAN mapping
Support 1:1 mapping
Double VLAN markup
Support basic QinQ
Support flexible QinQ
Reliability protocol
Spanning Tree
Support STP/RSTP/MSTP
Ring Protocol
Support
EAPS protocol
Support RFC3619
ERPS protocol
Support G.8032/Y.1344
LLDP protocol
Support LLDP and LLDP-MED
UDLD protocol
Totally compatible with UDLD protocol of CISCO
Host routing
Static ARP
Support
Static Routing
Support
L3 VLAN interface
Up to 32 L3 VLAN Interface.
Multicast function and protocol
Static Multicast MAC Address
Support
IGMP SNOOPING
Support
MVR
Support
GMRP protocol
Support
ACL
ACL based on Standard IP
Support
ACL based on Extend IP
Support
ACL based on MAC IP
Support
ACL based on MAC ARP
Support
ACL port filtering
Support
ACL based on time
Support
QoS
Member of port queues
8
Scheduling mode of port queues
Support WRR,SP,WFQ scheduling mode
Sorting based on port
Support
Sorting based on 802.1p
Support
Sorting based on DSCP （Diff-Serv）
Support
Sorting based on ACL data flow
Support
QoS strategy
Support packet mapped to the corresponding output queue
Support to modify the packet’s COS and DSCP sign
Support limit of data flow
Support statistics of data flow
Support mirroring of data flow
IPv6
ICMPv6
Support
IPv6 Neighbor Discovery
Support
MLD Snooping
Support
IPv6 Telnet
Support
Management feature
CLI management
Support serial port management
Support TELNET management
Support SSH management
WEB management
Support
SNMP management
Support SNMP protocol
Support SNMP TRAP
Support standard and private MIB
User management
Support anonymous user
Support multi-user management
TACACS+
Support TACACS+ server remote user name and password authentication
Support PAP and CHAP password encryption
Support TACACS+ server command authorization
Log management
Support local log management
Support SYSLOG
RMON
Support RMON 1,2,3,9 group
Cluster management
Support neighbor discovery protocol
Support topology discovery protocol
Support manual and automated join cluster group
Support cluster unification management
OAM
Support 802.3ah
Support 802.1ag
Configuration File Download/Upload
Support
Upgrade Firmware
Support
Timer management
Support local timer management
Support SNTP protocol get clock
Security feature
Administrative Security
Support start and end TELNET、WEB and SNMP serve
Support TELNET、WEB and SNMP serve binding with Standard IP ACL
Support control the number of user for TELNET
CPU protect
Switch self-security protect,forbid flow attack
AAA
Support 802.1x protocol
Support RADIUS protocol
Support RADIUS server authentication authorization and bill
Support MAC-based 802.1X authentication.
Support 802.1x guest VLAN
IP-MAC address binding
Support binding between static configuration IP,MAC and port
DHCP SNOOPING
Support dynamic ARP binding to prevent ARP spoofing
Support dynamic IP,MAC port binding
Support stationary port connect to DHCP server,to prevent privately connect to DHCP sever
Prevent ARP spoofing
Support manual configure ACL rule based on MAC ARP prevent ARP spoofing
Support DHCP SNOOPING function,switch dynamically binding ARP and port ,when the DHCP get IP address , to prevent ARP spoofing
Debugging tools
PING
Support
TRACEROUTE
Support
TELNET client
Support
Package
Unit Size
440*200*44mm
package
Carton Box
Package
Switch
User Manual
Warranty Card
Power Cord*1
Rack Mount Kit*2
Rubber Feet*4
-
S2926R
24GE+2SFP L2+ Managed Switch
