Product Description:

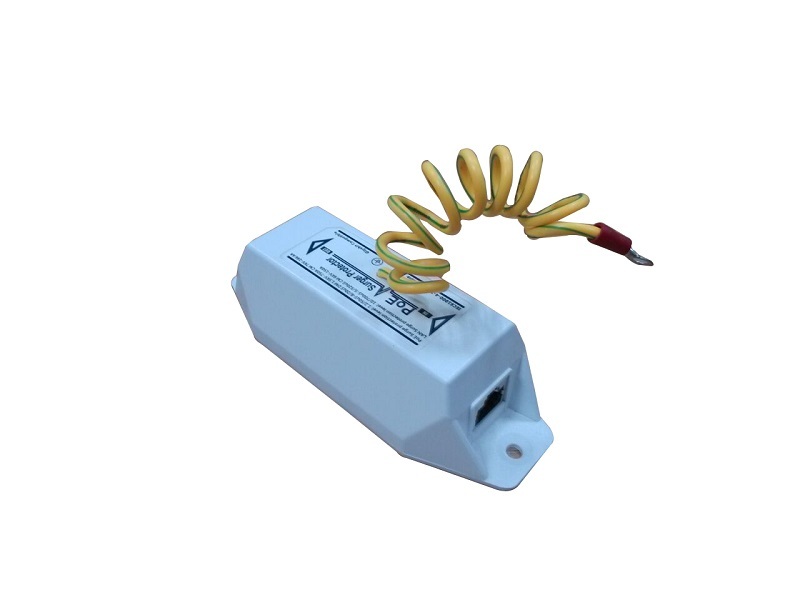

PV201-6KV network surge protector is designed to protect the network devices not effect by the surge or thunder. It can be used together with the network switch, router, LAN cards, modem, etc.This product support muti-protection, gigabit pass-through, less consume.
During use, please make sure the land screw is connected to the land. That will make sure when the unit is effected by the surge or thunder, the energy can be released to the land which will protect the network devices not effected or broken.
Product Features:
- 10/100/1000 Mbps Data Rate
- 6KV light protection for each RJ45 port
- CAT5,CAT5e CAT6 Compatible
- All 8 pins protected
- Shielded RJ45 and plastic housing
- Complies with IEC 61643-21 Standard
- Rack mounted install with ground wire
- Easy plug-and-play installation
- CE class A, LVD, FCC, ROHS 2.0
-
Product Specifications:
Description
No of Channels
1 Channel
Rate
10/100/1000M
Rated Volt
48V
Max Volt
57V
Rated Current
0.8A
Discharge Volt
2KV(line-line) 6KV(line-PG)
Discharge Current
6KV-150A
Residual Volt
≤70V(line-line) ≤70V(line-PG)
Transmission Frequency
250MHz
Insertion Loss at 250MHz
≤2dB
Capacitance
≤5000pF(line-line) ≤2500pF(line-PG)
Operating Temperature
-40 to 80℃
Electromagnetic
Emission & Immunity
FCC (Part15, Class A)
CE (EN55022/24)
Safety Approvals
CE/LVD (EN60950-1)
ROHS
ROHS 2.0
Connector Type
RJ45 Shield (input/output)
Land connect Type
Screw
Install Type
Wall mounted
Enclosure Type
Plastic Case
Package List
Surge Protector
1pcs
User Manual
1pcs
-
-
Order Information:
Models
PV201-6KV
1 channel gigabit network 6KV surge protector
