  • Product Description

    HN-WB450 is a wireless network bridge product independently developed by Shenzhen Hi-Net Technology Company. It is used for application scenarios such as scenic spots, factories, tower cranes, elevators, etc. This product uses IEEE802.11ac technology and can provide up to 450Mbps Wireless transmission rate, 5.8G working frequency band. Unique pairing technology, without computer configuration, easily complete point-to-point and point to multi-point pairing.

    HN-WB450 adopts industrial high-grade waterproof and dust-proof plastic shell design, which can easily adapt to various harsh outdoor environments. Built-in high-gain 14dBi directional plate antenna, easy and quick installation. It has the characteristics of high performance, high gain, high receiving sensitivity, high bandwidth, etc., which greatly enhances the wireless transmission performance and stability, and is widely used in medium and short distance video transmission and data transmission.

    Product Features

    IEEE 802.3 10Base-TIEEE 802.3u 100Base-TX

    IEEE802.11a, IEEE802.11 bIEEE 802.11gIEEE 802.11n, IEEE802.11ac

    Wireless rate450Mbpstransmission distance up to 2000Meters

    Built-in directional antenna, Antenna gain up to 14dBi

    Networking mode: point-to-point, point to multi-point (within 8 points)

    Working status: master AP, slave AP (digital conversion)

    Working mode: gateway mode, network bridge mode

    Automatic pairing, automatic bridging

    External LED system status, wireless status display

    External reset switch

    Local management and maintenance

    Support 12V DC power supply or POE power supply

    Operating Temperature-3055

    IP65 dust-proof and waterproof plastic shell

    MTBF200,000 hours

    Warranty2years

  • Product Specifications:

    Attributes

    Model

    HN-WB450

    wireless technology

    5.8G:450M  802.11b/g/n/ac MIMO

    Operating mode

    The transmitting end

    The Receiving end

    RAM

    8MB DDR3 RAM

    Flash

    1MB Flash

    LED Indicators

    8 groups, from top to bottom are signal indicator*4, LAN1, LAN2, system light, power light

    Working frequency

    5.1GHz~5.8GHz frequency

    Transmission rate

    450Mbps

    Wireless power

    100mW

    Maximum transmission distance

    2000meters

    Antenna

    Built-in high gain 14dBi directional plate antenna

    Horizontal angle: 60°, vertical angle 60°

    Networking Interfaces

    2*10/100 Mbps adaptive network interface

    On/Off/Restart switch

    1*Digital switch/reset button, short press the digital tube to display the value plus one

    Long press for 15 seconds to restore factory settings

    Operating Temperature

    Temperature-30℃~+55℃(Operating),HumidityNon-condensing):10%~90%(Operating),

    Storage Temperature

    Temperature-40℃ ~+70℃(storageHumidityNon-condensing5%~95%(storage

    Power Method

    24V 1A Non-standard POE power supply

    DC 12V 1A

    Power consumption

    10W

    Protection level

    IP65

    Dimensions

    260*90*37(mm)

    Weight

    0.4Kg

    Installation method

    Pole installation

    Performance

    Operating mode

    Master/Slave mode (Dial code conversion)

    wireless function

    SSID broadcast/hide

    support Chinese SSID

    Wireless encryptionWPAWPA2WPA-PSKWPA2-PSK

    Transmit power setting: support 1dBm linear adjustment

    WDS function

    QoSWMM

    Support digital quick pairing function

    Networking mode:

    point-to-point

    point to multi-point (within 8 points)

    Management method

    Local WEB management

    Remote management

    Network mode

    Bridge: static IP/DHCP acquisition

    Gateway: Static IP/DHCP acquisition/PPPoE

    Wireless Bridge management

    Support local/cloud centralized management, real-time remote maintenance

    Wireless management

    Network Bridge configuration/advanced configuration/WiFi settings

    Distance

    Support distance detection

    System

    Time zone time configuration, login password modification, backup/restore, restart/timed restart

    RF characteristics

    Frequency Range

     5.1GHz~5.8GHz

    Receiving sensitivity

    11a: -72dbm@54Mbps, -88dbm@6Mbps

    11ac: -66.5dbm@MCS7, -83dbm@MCS0

    Working frequency

    3640444852566064149153157161182186190194

    Antenna

    5G : 1T1R

    Frequency deviation

    5G3640444852566064149153157161182186190194

    EVM

    802.11n: -28 DB 802.11a: -25 DB

    Frequency deviation

    ±20ppm

    Packing list

    Wireless network bridge

    1piece

    User manual

    1piece

    Warranty card

    1piece

    POE power adaptor

    1piece

  • Installation Method

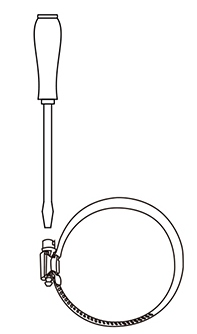

    1.  Unscrew the screws of the holding ring in the accessories

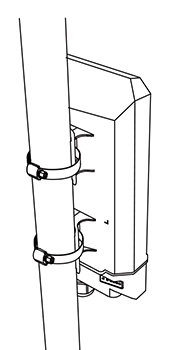

    Tie the pole and the wireless network

            bridge together with a holding ring, and adjust the position and angle of the equipment.



    3.Tighten the holding ring screws to fix the device on the pole





  • Model

    HN-WB450

    IEEE802.11ac 5G 450M Wireless Bridge
