Applied to rail transit, expressway, power station, pipe gallery project and wireless wiring project

Category:

Key words: switch

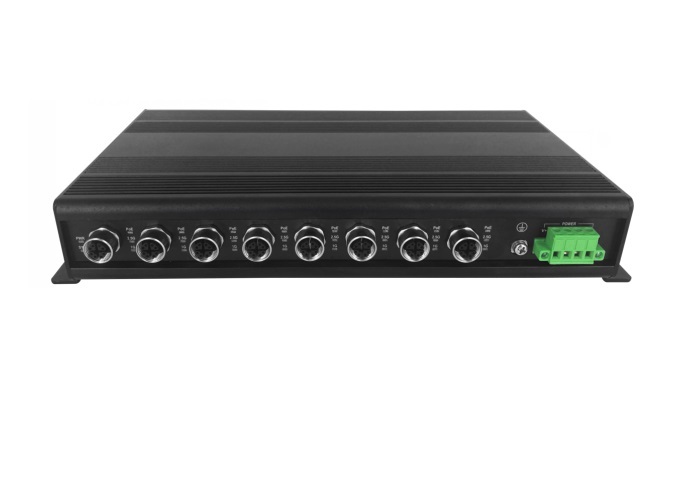

The TNS4008-EI-DC is a high-performance Ethernet Switch with 8 x 100/1000/2500Mbps M12 (X-code) Copper ports, which meets the high reliability requirements demanded by industrial rolling stock applications. The TNS4008-EI-DC is designed to meet which critical network environment M12 connectors. It is best for railway in train/track side, vehicle and mining applications. For more usage flexibility, supports wide operating temperature from -40~75℃.

Specifications:

Attributes
Networking Interfaces	8 x 100/1000/2500Base-TX with X-coded M12 connectors
LED Indicators	Power, Link/Act, Speed
Performance
Switching Capacity	40 Gbps
Forwarding Capacity	29.76 Mpps
Forwarding Mode	Store and Forward
Packet Buffer Memory	12 Mbit
MAC Address Table	16K
Physical
Dimensions
Weight
Operating Temperature	-40 to 75℃
Storage Temperature	-40 to 75℃
Operating Humidity	5 to 95% Noncondensing
Power Method	12-60VDC
Max. Power Consumption	15W
EMC Safety	FCC, CE, RoHS
Reliability
Package List
Switch	1pcs
Power Adapter	1pcs
User Manual	1pcs
Power Cord	1pcs
Rubber Feet	4pcs

Order Information:

Switch Models

TNS4008-DC

8 x 2.5G M12 Industrial Ethernet Switch

Switch Models
TNS4008-DC	8 x 2.5G M12 Industrial Ethernet Switch
