  • IPX201 is an IP65 water-proof standard Gigabit POE extender which is designed based on IEEE802.3at standard. The input port is based on IEEE802.3at standard, the max input power is around 26W. The output two port is fit the IEEE802.3af and IEEE802.3at standard, the output power is 25W max per port. With the IP65 water-proof case and connectors design, this product is mainly used for the outdoor long distance solutions like the IPC, AP, VOIP etc. This product all Ports can optional support 6KV surge protection. Based on those unique design, it will make your long-distance solution “ Easy” “Stable” and “Variety”.



    Product Features:

    ● IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

    ● One PoE Input (PD port) and one PoE output (PSE ports)

    ● 10/100/1000M Base-T Ports

    ● Extends the range of PoE and Ethernet an additional 100 meters.

    ● No additional power supply is required.

    ● Automatically detects and protects PoE equipment from being damaged by incorrect installation.

    ● Full-rate network throughout the whole extended distance.

    ● Compact size, Wall-Mountable design.

    ● Easy plug-and-play installation.

    ● IP65 Aluminum case

    ● CE class A, LVD, FCC, ROHS 2.0

  • Item

    Description

    No. of channels

    1

    Pass Through Data Rates

    10/100 Mbps half/full duplex

    Power over Ethernet input

    Pin Assignment and Polarity:

    Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+)

    Power over Ethernet Output

    Pin Assignment and Polarity:

    1/2 (-), 3/6 (+)

    Output Power: up to 22W

    Connectors

    Shielded RJ-45, EIA 568A and 568B

    Network cables

    Shielded category 5 (or higher)

    Dimensions

    140mm x 40mm x 30mm

    Mounting

    Wall of shelf

    Environment

    Outdoor IP65

    Environmental Conditions

    Operating Ambient Temperature:-40 to 75

    Operating Humidity:

    Maximum 90%, Non-condensing

    Storage Temperature:-40 to 75

    Storage Humidity:

    Maximum 95%, Non-condensing

    Regulatory Compliance

    IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

    RoHS Compliant, CE, FCC

    Electromagnetic

    FCC Part15, Class B

  • Maximum Distances for Power Sources

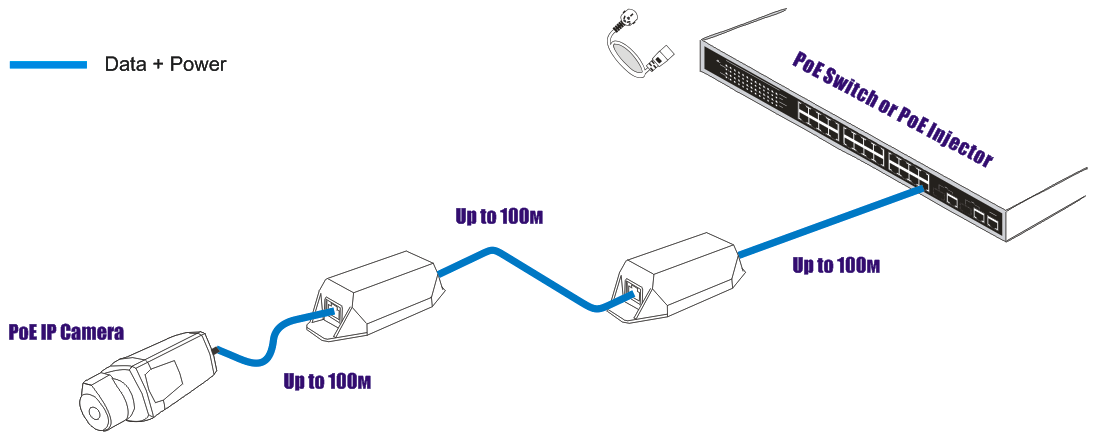

    Multiple PoE Extenders can be connected every 100 meters to obtain greater distances. The actual figures depend on operating conditions. The range is over 24 AWG or heavier Cat-5e or Cat-6 cable except where specified.



    Examples for low power PoE Devices (that are PoE Class 1, or require under 4 watts)



    PoE Source

    PoE switch (802.3af)

    15W mid-span (802.3af)

    PoE+ switch (802.3at)

    30W mid-span (802.3at)

    Maximum Distances

    400m

    400m

    500m

    500m



    Examples for medium power PoE Devices (that are PoE Class 2, or require under 6 watts)



    PoE Source

    PoE switch (802.3af)

    15W mid-span (802.3af)

    PoE+ switch (802.3at)

    30W mid-span (802.3at)

    Maximum Distances

    300m

    300m

    400m

    400m



    Examples for full power PoE Devices (that are PoE Class 0 or 3, or require under 12 watts)



    PoE Source

    PoE switch (802.3af)

    15W mid-span (802.3af)

    PoE+ switch (802.3at)

    30W mid-span (802.3at)

    Maximum Distances

    200m

    200m

    300m

    300m



    Examples for PoE+ Devices (that are PoE Class 4 that under 22 watts, or 802.3at compliant)



    PoE Source

    PoE switch (802.3af)

    15W mid-span (802.3af)

    PoE+ switch (802.3at)

    30W mid-span (802.3at)

    Maximum Distances

    Not applicable

    Not applicable

    200m

    200m



  • Models

    IPX201

    IP65 1 in 1 out 10/100M PoE Extender

    IPX201HV

    IP65 1 in 1 out 10/100M PoE Extender, with ports 6KV surge protection



  •
