PX204 1 Port Ultra-bt90w Input,4 Ports 30W-at Out Indoor Use Gigabit POE Extender

Applied to rail transit, expressway, power station, pipe gallery project and wireless wiring project

Category:

Key words: switch

Messages
  • Describe
  • Specifications
  • Application
  • Order Information
  • Documentation
  • Download

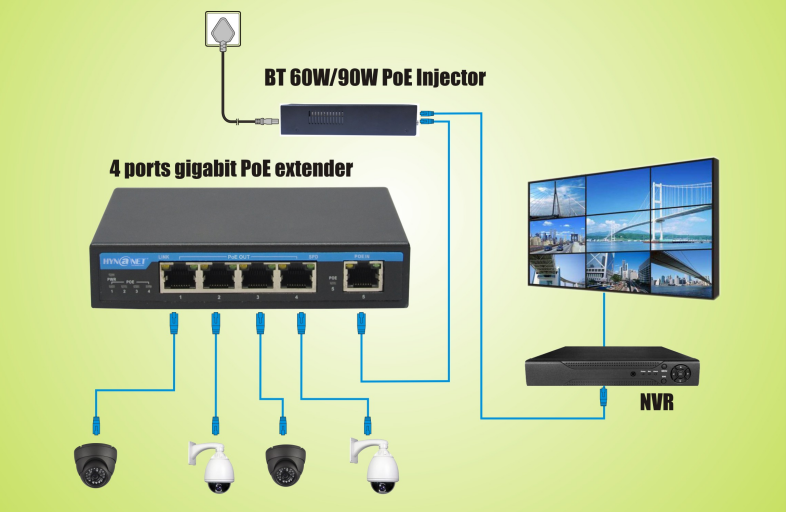

  • PX204 is an long distance version Gigabit POE extender which is designed based on the new standard IEEE802.3bt standard. The input port is based on IEEE802.3 bt standard,  so the Max input power is around 75W. The output four ports are fit the IEEE802.3af and IEEE802.3bt standard, the output power is 30W max per port. Based on 802.3bt input and 802.3at output technology, this product is mainly used for the long-distance solutions like the IPC, AP, VOIP etc. This product all Ports support 6KV surge protection. Based on those unique design, it will make your long-distance solution “ Easy” “Stable” and “Variety”.



    Product Features:

    ● IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt

    ● One PoE Input (PD port) and 4 PoE output (PSE ports)

    ● 10/100/1000M Base-T Ports

    ● Extends the range of PoE and Ethernet an additional 100 meters.

    ● No additional power supply is required.

    ● Automatically detects and protects PoE equipment from being damaged by incorrect installation.

    ● Full-rate network throughout the whole extended distance.

    ● Compact size, Wall-Mountable design.

    ● Easy plug-and-play installation.

    ● Metal case

    ● CE class A, LVD, FCC, ROHS 2.0

  • Power over Ethernet

    PoE Interfaces

    1 x RJ-45 Connector for 802.3af/at/bt Power input

    4 x RJ-45 Connector for 802.3af/at Power output

    PoE Standard

    IEEE802.3af, IEEE802.3at, IEEE802.3bt

    Input PoE Voltage

    44~57VDC

    Input PoE Pin Assignment

    V+ (RJ45 Pin3,6), V- (RJ45 Pin 1,2) and V+ (RJ45 Pin4,5), V- (RJ45 Pin 7,8)

    Output PoE Wattage

    65W

    Output PoE Pin Assignment

    V+ (RJ45 Pin3,6), V- (RJ45 Pin 1,2) and V+ (RJ45 Pin4,5), V- (RJ45 Pin 7,8)

    Power cost

    5W

    Physical

    Dimensions

    130 x 87 x 30mm

    Weight

    0.8KG

    Operating Temperature

    0 to 40

    Storage Temperature

    -40 to 85

    Operating Humidity

    5 to 95% Noncondensing

    Ingress Protection Level

    IP30

    Electromagnetic

    Emission & Immunity

    FCC (Part15, Class A)

    CE (EN55022/24)

    Safety Approvals

    CE/LVD (EN60950-1)

    ROHS

    ROHS 2.0

    Package List

    PoE Extender

    1pcs

    User Manual

    1pcs
