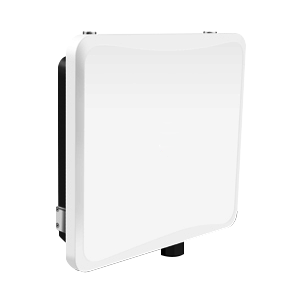

HN-OAP1200 802.11ac 2.4/5.8GHz 1200M Dual-band Rainproof Outdoor AP
HN-OAP1200 802.11ac 2.4/5.8GHz 1200M Dual-band Rainproof Outdoor AP
HN-OAP1200 802.11ac 2.4/5.8GHz 1200M Dual-band Rainproof Outdoor AP
  • HN-OAP1200 802.11ac 2.4/5.8GHz 1200M Dual-band Rainproof Outdoor AP
  • HN-OAP1200 802.11ac 2.4/5.8GHz 1200M Dual-band Rainproof Outdoor AP
  • HN-OAP1200 802.11ac 2.4/5.8GHz 1200M Dual-band Rainproof Outdoor AP

Applied to rail transit, expressway, power station, pipe gallery project and wireless wiring project


Key words: switch

  • Describe
  • Specifications
  • Application
  • Order Information
  • Documentation
  • Download
  • Product Specification

    HN-OAP1200 is a dual-band 802.11ac wireless access point (AP) product launched by Shenzhen Hi-net technology Company. Used for outdoor scenes such as villages, schools, squares, and driving schools. It supports two spatial stream technologies and 2.4G provides up to 300Mbps 5G provides a maximum access rate of 900Mbps, total can provides an access rate of 1200Mbps.

    HN-OAP1200 fully considers important factors such as wireless network security, radio frequency control, mobile access, service quality assurance, seamless roaming, etc. Using together with wireless controllers which produced by Shenzhen Hi-net technology Company, could meet the needs of wireless users for safe, efficient and convenient access to the network.

    HN-OAP1200 adopts industrial grade ASA engineering plastic shell, with IP65 grade dust-proof, waterproof, and pole-mounted appearance design.

    HN-OAP1200 supports 4kV lightning protection, 15kV ESD protection, and PoE power reception to ensure the safety and stability of the product when used outdoors.

    HN-OAP1200 adopts an external PA design, the maximum transmit power can reach 500mW, a built-in high-gain dual-polarization directional antenna, the horizontal and vertical coverage angles are both 70 degrees, after actual measurement, the effective coverage distance can reach 100 meters.


    Product Features

    1. IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z, IEEE802.3af, IEEE802.3at
    2. IEEE802.11 a, IEEE802.11 bIEEE 802.11gIEEE 802.11n, IEEE802.11 ac
    3. Wireless rate2.4G 300Mbps, 5G 900Mbps, total 1200Mbps
    4. Built-in2.4GHz and 5GHz 2X2 MIMO directional antenna, antenna gain up to 6dBi

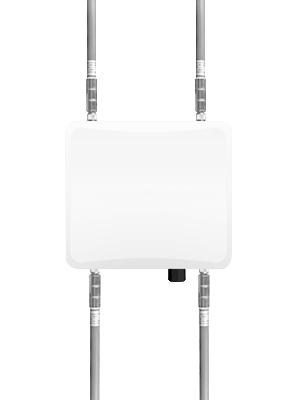

    5. Optional 8dB, 12dB omnidirectional glass fiber reinforced plastic antenna or 14dB sector antenna
    6. Built-in standard PoE power supply module design
    7. Wireless network security support includes WEP, WPA, WPA2 encryption
    8. Provide wireless client access restriction function
    9. Provide 8 SSID
    10. Support Chinese SSID
    11. Support VLAN and SSID binding to ensure data security
    12. Rich service quality assuranceQoS
    13. Support Hi-net wireless controller management
    14. Local management and maintenance
    15. Support POE power supply
    16. Operating Temperature-3055
    17. 4kV lightning protection, 15kV ESD protection
    18. IP65 ASA engineering plastic shell
    19. MTBF200,000 hours
    20. Warranty2 years
  • Product Specifications:




    wireless technology

    802.11acdual-channel dual-frequency design

    2.4G:300M  802.11b/g/n 2*2MIMO

    5G450M  802.11a/n/ac 2*2MIMO

    Operating mode

    Fit AP


    128MB DDR3 RAM


    16MB Flash

    Working frequency

    802.11b/g/n 2.4G ~ 2.483GHz

    802.11a/n/ac 5.1505.350GHz5.475.7255.7255.850GHz (The working frequency band varies according to the configuration of different countries

    Transmission rate

    2.4G provides a maximum access rate of 300Mbps, 5G provides a maximum access rate of 900Mbps, total provides an access rate of 1200Mbps

    Transmit power


    Spatial flow

    2 streams



    Receiving sensitivity




    11ac HT20-83dBmMCS0, -57dBmMCS9

    11ac HT40-79dBmMCS0, -57dBmMCS9

    11ac HT80-76dBmMCS0, -51dBmMCS9


    Built-in 6dBi high gain antenna

    Optional 8dB, 12dB omnidirectional fiberglass antenna or 14dB sector antenna



    Wireless coverage angle

    horizontal direction70°

    Vertical direction: 30°

    Networking Interfaces

    1x10/1000Base-T Ethernet portsWAN/PoE port support PoE Power supply

    Operating Temperature


    Storage Temperature

    Temperature-40℃ ~+70℃(storageHumidityNon-condensing5%~95%(storage

    Power Method

    POE power supply

    Power consumption






    Installation method

    Pole installation


    wireless function

    SSID broadcast/hide

    Number of SSID: 8 (support Chinese SSID)

    Wireless encryption: WPA-PSK, WPA2-PSK

    User isolation: isolation between wireless networks, isolation within APs

    Limit on the number of wireless clients

    Broadcast optimization

    Automatic channel selection

    Transmit power adjustment

    RSSI restrictions

    Eliminate weak signal equipment

    User limit

    Maximum number of clients that can be associated


    System Management

    Centralized management through AC, configuration issuance

    AP log


    software upgrade

    AP restart

    Other functions

    Short Guard Interval

    DTIM interval setting

    Beacon interval setting

    RTS threshold setting

    Wireless user status display

    Packing list

    Wireless AP


    User manual


    Warranty card




  • Model


    802.11b/g/n 2.4G 300M Outdoor thin AP
