IDS1004F2 4-port 100Mbps RJ45 + 2-port Gigabit SFP slot rack-mount industrial switch
¥ 0
¥ 0
Overview
Hardware Features
Firmware Features
Applications
Order Information
Download
The IDS1004F2 series is an industrial-grade rail-type switch independently developed by Shenzhen Hi-Net Technology Co., Ltd. The IDS1004F2 provides 4 hundred-megabit electrical ports and 2 Gigabit SFP optical ports, supporting IEEE802.3/802.3u/802.3x, IEEE802.3ab, IEEE802.3z, and MDI/MDI-X adaptive RJ45 ports. The IDS1004F2 uses a high-strength IP30 protective shell, industrial-grade four-level EMC design, supports Auto-Negotiation adaptive technology, and comprehensive LED status indication, providing a flexible and stable solution for your Ethernet connection. The IDS1004F2 industrial-grade switch has an operating temperature of -40~75°C (wide temperature range), suitable for any industrial environment, and supports rail or wall-mounted installation, and can be easily placed in compact control boxes. It supports a wide range of dual redundant power input (12~57V DC) to increase the reliability of the communication network. Based on industrial installation requirements, it provides two installation modes: DIN35 rail or wall mounting. The IDS1004F2 industrial-grade switch is a plug-and-play industrial-grade device and a reliable solution for your industrial automation networking.
Product Features
● Complies with IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
● Supports 4 10/100TX RJ45 ports and 2 1000M SFP optical ports
● High backplane bandwidth 4.8Gbps
● IEEE802.3x flow control
● Surge protection for power ports and data ports
● Wide power input: 12~57VDC
● Wide operating temperature: -40~75℃
● IP30 aluminum shell
● MTBF 200,000 hours
● EMI: FCC Part 15. CISPR(EN55022) class A
● EMS: EN61000-4-2(ESD), EN61000-4-3(RS)
● EN61000-4-4(EFT), EN61000-4-5(Surge)
● EN61000-4-6(CS), EN61000-4-6(Common Mode Conduction)
● Industrial: IEC6100-6-2
● Railway: EN50155.EN50121-4
● Transportation: NEMA TS-2
● Warranty: 5 years
|
Product Attributes |
|
|
Network Interface |
4 10/100 M RJ45 Port . 2 1000M SFP Port . |
|
LED Indicator Light |
Power , Port Rate, Port Connection Connection |
|
Network Cable Specifications |
|
|
10Base-T |
2-pair UTP/STP Cat. 3,4,5/5E,6 Category Cable EIA/TIA-568 100-ohm (100m) |
|
100Base-T |
2-pair UTP/STP Cat. 5/5E,6 Category Cable EIA/TIA-568 100-ohm (100m) |
|
Product Performance |
|
|
Switching Capacity |
4.8 Gbps |
|
Packet Forwarding Rate |
3.57 Mpps |
|
Forwarding Mode |
Store and Forward |
|
Data Packet Buffer Memory |
1 Mbit |
|
MAC Address Table |
8 K |
|
Physical Properties |
|
|

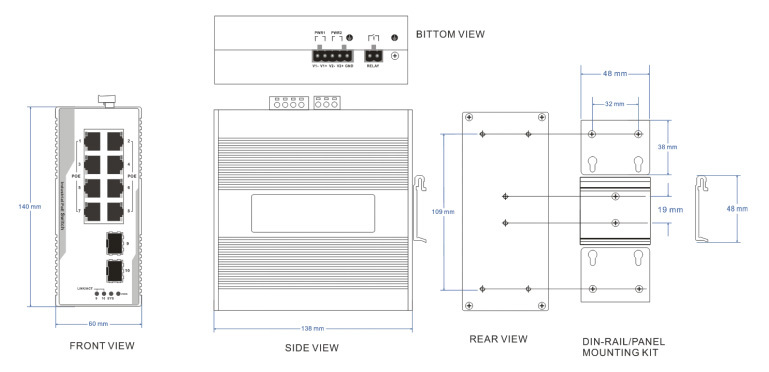

Dimensions |
140x138x40mm |
|
Weight |
0.5kg |
|
Operating Temperature |
-40~75 ℃ |
|
Storage Temperature |
-40~85 ℃ |
|
Operating Humidity |
5 to 95% Non-condensing |
|
Voltage Input Range |
12 -57 V D C |
|
Power Consumption |
5 W |
|
EMC Safety |
FCC, CE, RoHS |
|
Reliability |
MTBF200,000 Hours |
|
Packaging |
|
|
Industrial Ethernet Switch |
1 Unit |
|
User Manual |
1 This |
|
Switch Model |
|
|
IDS1004F2 |
4 100M Rack-Mount Industrial Switch with 2 Gigabit SFP Uplink Port |
|
Optical Module |
|
|
GSFP-RJ45 |
1000M Optical Module ', RJ45 Port |
|
GSFP-M-LC-R5 |
1000M Optical Module , Multi-mode ', 500M, 850nm, LC |
|
GSFP- S -LC-20 |
1000M Optical Module , Single-mode , 2 0km, 1310nm, LC |
|
GSFP- S -LC-40 |
1000M Optical Module , Single-mode ', 40km, 1310nm, LC |
|
GSFP- S -LC-80 |
1000M Optical Module , Single-mode ', 80km, 1550nm, LC |
