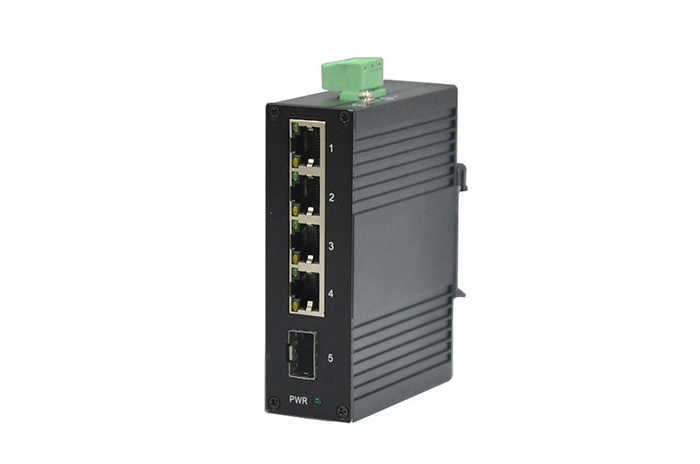

IDS1604F1 4 Gigabit RJ45 ports + 1 Gigabit SFP slot, a full Gigabit rail-type industrial switch
¥ 0
¥ 0
Overview
Hardware Features
Firmware Features
Applications
Order Information
Download
The IDS1604F1 series is a fully gigabit industrial DIN-rail switch independently developed by Shenzhen Hi-Net Technology Co., Ltd. The IDS1604F1 provides four gigabit electrical ports and one gigabit SFP port, supporting IEEE802.3/802.3u/802.3x, IEEE802.3ab, IEEE802.3z, and MDI/MDI-X auto-adaptive RJ45 ports. The IDS1604F1 uses a high-strength IP30 protective shell, with an industrial-grade four-level EMC design, supporting Auto-Negotiation adaptive technology and comprehensive LED status indicators, providing a flexible and stable solution for your Ethernet connection. The IDS1604F1 industrial switch operates at a wide temperature range of -40~75°C, suitable for any industrial environment, and supports DIN-rail or wall mounting, allowing for convenient placement in compact control boxes. It supports a wide range of power input (12~57V DC) to enhance the reliability of the communication network. Based on industrial installation requirements, it offers two installation modes: DIN35 rail or wall mounting. The IDS1604F1 industrial switch is a plug-and-play industrial device, providing a reliable solution for your industrial automation networking.
Product Features
● Complies with IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
● Supports 4 10/100/1000TX RJ45 ports and 1x1000M optical port
● High backplane bandwidth: 10Gbps
● IEEE802.3x flow control
● Surge protection for power and data ports
● Wide power input: 12~57VDC
● Wide operating temperature: -40~75℃
● IP30 aluminum shell
● MTBF 200,000 hours
● EMI: FCC Part 15, CISPR (EN55022) Class A
● EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS)
● EN61000-4-4 (EFT), EN61000-4-5 (Surge)
● EN61000-4-6 (CS), EN61000-4-6 (Common Mode Conduction)
● Industrial: IEC6100-6-2
● Railway: EN50155, EN50121-4
● Transportation: NEMA TS-2
● Warranty: 5 years
|
Product Attributes |
|
|
Network Interface |
4 10/100 /1000M RJ45 Port 1 1000M Optical Port |
|
LED Indicator Light |
Power Supply , Port Rate, Port Connection Connection |
|
Network Cable |
|
|
10Base-T |
2-pair UTP/STP Cat. 3,4,5/5E,6 Cable Type EIA/TIA-568 100-ohm (100m) |
|
100Base-T |
2-pair UTP/STP Cat. 5/5E,6 Cable Type EIA/TIA-568 100-ohm (100m) |
|
1000Base-T |
4-pair UTP/STP Cat. 5E,6 Cable Type EIA/TIA-568 100-ohm (100m) |
|
Product Performance |
|
|
Switching Capacity |
10 Gbps |
|
Forwarding Capacity |
7.44 Mpps |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
1 Mbit |
|
MAC Address Table |
8K |
|
Physical Properties |
|
|
Dimensions |
150x100x32mm |
|
Weight |
0.5KG |
|
Operating Temperature |
-40 to 75 ℃ |
|
Storage Temperature |
-4 0 to 85 ℃ |
|
Operating Humidity |
5 to 95% Non-condensing |
|
Voltage Input Range |
12 -57 V D C |
|
High Power Consumption |
5W |
|
EMC Safety |
FCC, CE, RoHS |
|
Reliability |
MTBF200,000 Hours |
|
Packaging |
|
|
Industrial Switch |
1pcs |
|
User Manual |
1pcs |
|
Switch Model |
|
|
IDS1604F1 |
4 Full Gigabit Rack-Mount Industrial Switch with one Gigabit SFP Uplink Port |
|
Optical Module |
|
|
GSFP-RJ45 |
1000M Optical Module ', RJ45 Port |
|
GSFP-M-LC-R5 |
1000M Optical Module , Multi-mode ', 500M, 850nm, LC |
|
GSFP- S -LC-20 |
1000M Optical Module , Single-mode , 2 0km, 1310nm, LC |
|
GSFP- S -LC-40 |
1000M Optical Module , Single-mode ', 40km, 1310nm, LC |
|
GSFP- S -LC-80 |
1000M Optical Module , Single-mode ', 80km, 1550nm, LC |
