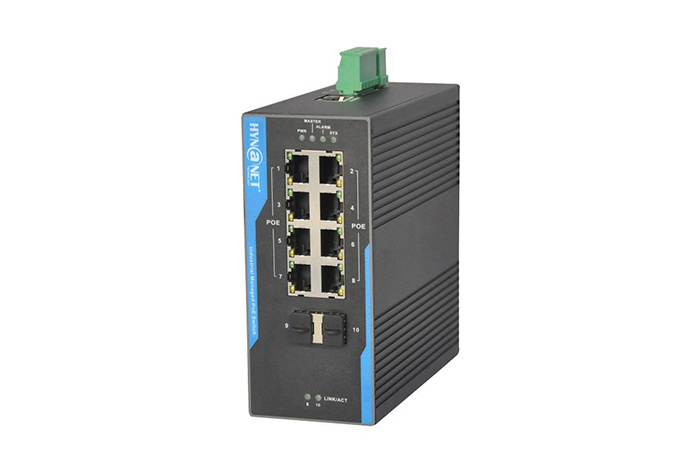

IDS1308F2 8-port 100Mbps RJ45 + 2-port Gigabit SFP slot managed rail-type industrial switch

Layer 2 managed 8-port 100Mbps industrial rack-mount switch with 2 Gigabit SFP ports

¥ 0

Quantity

Add to cart

Buy now

Overview

Hardware Features

Firmware Features

Applications

Order Information

Download

The IDS1308F2 switch is a managed industrial DIN-rail switch independently developed by Shenzhen Hi-Net Technology Co., Ltd. The IDS1308F2 provides 8 hundred-megabit electrical ports and 2 gigabit optical ports, supporting IEEE802.3/802.3u/802.3x, IEEE802.3ab, IEEE802.3z, and MDI/MDI-X auto-adaptive RJ45 ports. This switch is specifically designed to meet the flexible and diverse needs of industrial applications, providing a cost-effective industrial Ethernet communication solution. The product features high availability, reliability, and security to ensure the transmission of critical data. The IDS1308F2 industrial switch also provides redundant power support and a wide range of DC power input. In terms of structure, the IDS1308F2 industrial switch fully considers industrial installation requirements and uses DIN rail or panel mounting.

The "HRP ring" technology is specifically designed and developed by Hi-Net Technology for industrial applications. It provides an Ethernet self-recovery function after disconnection, with a recovery time of less than 20 milliseconds. Users can specify any port (including normal ports and aggregated ports) for ring formation through the management interface to provide faster recovery speed and higher communication bandwidth.

Product Features

● Complies with IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z

● Supports 8 10/100TX RJ45 ports and 2 1000M SFP optical ports

● High backplane bandwidth 5.6Gbps

● Supports standard IP / extended IP / MAC IP / ARP ACL

● IGMP snooping and IGMP query modes for multimedia applications

● Port mirroring and bandwidth control

● IEEE802.3x flow control

● Supports port-based VLAN / 802.1Q tagged VLAN

● Supports IEEE802.3ad port trunking via LACP

● Supports spanning tree protocol IEEE 802.1d

● Supports IEEE 802.1p Quality of Service

● Supports IEEE 802.1x user authentication

● Supports broadcast storm filter

● Supports DHCP server and client

● Supports system event log

● Supports command-line interface management

● Manageable via Web / SNMP / Telnet / console

● Surge protection for power ports and data ports

● Wide power input: 12~57VDC

● Wide operating temperature: -40~75℃

● IP30 aluminum housing

● MTBF 200,000 hours

● EMI: FCC Part 15. CISPR (EN55022) class A

● EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS)

● EN61000-4-4 (EFT), EN61000-4-5 (Surge)

● EN61000-4-6 (CS), EN61000-4-6 (common mode conduction)

● Industrial: IEC6100-6-2

● Railway: EN50155, EN50121-4

● Transportation: NEMA TS-2

● Warranty: 5 years

Product Attributes
Network Interface	8 10/100 M RJ45 Port . 2 1000M Fiber Port .
Management Interface	Console Port
LED Indicator Light	Power , Port Rate, Port Con nec
Transmission Rate
10Base-T	2-pair UTP/STP Cat. 3,4,5/5E,6 Cable EIA/TIA-568 100-ohm (100m)
100Base-T	2-pair UTP/STP Cat. 5/5E,6 Cable EIA/TIA-568 100-ohm (100m)
Product Performance
Switching Capacity	5.6 Gbps
Forwarding Capacity	4.17 Mpps
Forwarding Mode	Store and Forward
Packet Buffer Memory	4.1 Mbit
CPU Memory	256 Mbit
Flash Memory	32 Mbit
Flash Memory	8K
Jumbo Frames	16K
VLAN Quantity	4K
ACL Table	512
L3 Interface	32
Port Queue	8
Physical Properties
Dimensions	140x138x40mm
Weight	1.5KG
Operating Temperature	-40 to 75 ℃
Storage Temperature	-40 to 80 ℃
Operating Humidity	5 to 95% Non-condensing
Voltage Input Range	12 -57 V D C
Maximum Power Consumption	15W
EMC Safety	FCC, CE, RoHS
Reliability	MTBF200,000
Port Configuration
Enable and Disable	Support
Auto-negotiation	Supports forced port mode and speed
Flow Control	Support IEEE802.3x Full Duplex Supports half-duplex backpressure
Storm Control	Supports broadcast, multicast and DLF Packet Rate Limiting
Port Mirroring	Supports many-to-one mirroring
Rate Limiting	Supports port input and output rate limiting
Link Aggregation	Supports manual link aggregation Support LACP Maximum 8 maximum aggregation groups, each aggregation group contains a maximum of 8 ports
Integration Strategy	Source MAC / Destination MAC / Source Destination MAC Source IP / Destination IP / Source Destination IP
Port Protection	Each port can be configured as a protected port isolated from each other
MAC Configuration
MAC Address Table Management	Support
Transmission Mode	Support IVL Transmission Mode
Static MAC Address	Support
MAC Binding	Support
MAC Address Filter	Support
MAC Quantity Limit	Supports limiting learning on each port MAC Number of Addresses
VLAN Configuration
Based on 802.1Q of VLAN	Support
Based on MAC of VLAN	Support
Based on IP of VLAN	Support
Protocol-based VLAN	Support
Voice VLAN	Support
Visitor VLAN	Support
Dedicated VLAN	Support
VLAN Mapping	Support 1:1 Mapping
Dual VLAN Tag	Supports basic QinQ
Reliability Protocol
Spanning Tree	Support STP/RSTP/MSTP
BPDU Protection	Support
BPDU Filter	Support
Port Loop Detection	Support
EAPS Protocol	Support RFC3619
LLDP Protocol	Support LLDP and LLDP-MED
UDLD Protocol	Fully compatible CISCO of UDLD Protocol
Host Routing
Static ARP	Support
Static Routing	Support
Multicast
Static Multicast MAC Address	Support
IGMP Snooping	Support
MVR	Support
GMRP	Support
Access Control List ( ACL )
Standard-based IP	Support
Extended-based IP	Support
Based on MAC IP	Support
Based on MAC ARP	Support
Time-based	Support
Port Filtering	Support
Quality of Service ( QoS )
Scheduling Mode	Support WRR , SP, WFQ
Port-based sorting	Support
Based on 802.1p sorting	Support
Based on DSCP ( DiffServ ) sorting	Support
Based on ACL Data stream sorting	Support
QoS Policy	Supports mapping packets to corresponding output queues Supports modifying packet COS and DSCP Flags Data stream support limits Supports data stream statistics Supports data stream mirroring
Safety
Administrative Security	Supports start and end TELNET ， WEB and SNMP Service Support TELNET ， WEB and SNMP With standard IP ACL Service binding Supports control TELNET Number of users
CPU Protection	Switch self-protection, prohibiting traffic attacks
IP-MAC Address Binding	Supports static configuration IP ， MAC and binding between ports
AAA	Support 802.1x Protocol Support RADIUS Protocol Support RADIUS Server authentication, authorization, and accounting Supports based on MAC of 802.1X Authentication. Support 802.1x Visitor VLAN
DHCP Monitoring	Supports dynamic ARP Binding to prevent ARP Spoofing Supports dynamic IP ， MAC Port Binding Supports fixed port connection DHCP Server, preventing private connections DHCP Server
Prevention ARP Spoofing	Supports manual configuration based on MAC ARP of ACL rules, preventing ARP Spoofing Support DHCP SNOOPING function, when DHCP obtaining IP address, dynamically binding ARP and port, to prevent ARP Spoofing
Management function
CLI Management	Supports serial port management Support TELNET Management Support SSH Management
WEB Management	Support
SNMP Management	Support SNMP Protocol Support SNMP TRAP Supports standard and proprietary MIB
User Management	Supports multi-user management
Display CPU Utilization	Support
Displays memory utilization	Support
Log Management	Support
RMON	Support RMON 1,2,3,9 Group
Configuration download / Upload	Support
Firmware upgrade	Support
Timer Management	Supports local timer management Support SNTP Protocol to obtain clock
Debugging tools
PING	Support
Tracing	Support
TELNET Client	Support
Packaging
Industrial switch	1pcs
User manual	1pcs
DB9 to RJ45 Line	1pcs

Switch Model
IDS1308 F 2	8-port 100-Mbps rack-mount industrial switch with 2 gigabit SFP ports
SFP module
GSFP-RJ45	1000M SFP module 'RJ45 port
GSFP-M-LC-R5	1000M SFP module , Multi-mode ', 500M, 850nm, LC
GSFP- S -LC-20	1000M SFP module , Single-mode , 2 0km, 1310nm, LC
GSFP- S -LC-40	1000M SFP module , Single-mode ', 40km, 1310nm, LC
GSFP- S -LC-80	1000M SFP module , Single-mode ', 80km, 1550nm, LC
