IDS5008F4 8 Gigabit RJ45 ports + 4 10G SFP+ slots, Layer 3 managed, rack-mountable industrial switch

Three-layer 8-port Gigabit slide-rail industrial switch with 4 Gigabit SFP ports

¥ 0

Quantity

Add to cart

Buy now

Overview

Hardware Features

Firmware Features

Applications

Order Information

Download

The IDS5008F4 switch is a three-layer 10-gigabit managed industrial DIN-rail switch independently developed by Shenzhen Hi-Net Technology Co., Ltd. The IDS5008F4 provides 8 Gigabit electrical ports and 4 10-Gigabit SFP+ optical ports, supporting IEEE802.3/802.3u/802.3x, IEEE802.3ab, IEEE802.3z, and MDI/MDI-X auto-adaptive RJ45 ports. This switch is specifically designed to meet the flexible and diverse needs of industrial applications, providing a cost-effective industrial Ethernet communication solution. The product features high availability, reliability, and security to ensure the transmission of critical data. The IDS5008F4 industrial switch also provides redundant power support and a wide range of DC power input. In terms of structure, the IDS5008F4 industrial switch fully considers industrial installation requirements and uses DIN rail or panel mounting.

The "HRP ring" technology is specifically designed and developed by Hi-Net Technology for industrial applications. It provides self-recovery functionality after Ethernet disconnection, with a recovery time of less than 20 milliseconds. Users can specify any port (including regular ports and aggregated ports) for ring formation through the management interface, providing faster recovery speed and higher communication bandwidth.

Product Features

● Complies with IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z

● Supports 8 10/100/1000TX RJ45 ports and 4 1000M SFP optical ports

● High backplane bandwidth: 96Gbps

● Supports standard IP / extended IP / MAC IP / ARP ACL

● IGMP snooping and IGMP query modes for multimedia applications

● Port mirroring and bandwidth control

● IEEE802.3x flow control

● Supports port-based VLAN / 802.1Q tagged VLAN

● Supports IEEE802.3ad port trunking via LACP

● Supports spanning tree protocol IEEE 802.1d

● Supports IEEE 802.1p Quality of Service

● Supports IEEE 802.1x user authentication

● Supports broadcast storm filter

● Supports DHCP server and client

● Supports system event logging

● Supports command-line interface management

● Manageable via Web / SNMP / Telnet / console

● Surge protection for power ports and data ports

● Wide power input: 12~57VDC

● Wide operating temperature: -40~75℃

● IP30 aluminum housing

● MTBF 200,000 hours

● EMI: FCC Part 15. CISPR (EN55022) class A

● EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS)

● EN61000-4-4 (EFT), EN61000-4-5 (Surge)

● EN61000-4-6 (CS), EN61000-4-6 (Common Mode Conducted)

● Industrial: IEC6100-6-2

● Railway: EN50155, EN50121-4

● Transportation: NEMA TS-2

● Warranty: 5 years

Product Attributes
Network Interface	8 10/100 /1000M RJ45 Port . 4 10G SFP+ Optical Port .
Management Interface	Console Port
LED Indicator Light	Power Supply , Port Rate, Port Con nection
Network Cable
10Base-T	2-pair UTP/STP Cat. 3,4,5/5E,6 Cable EIA/TIA-568 100-ohm (100m)
100Base-T	2-pair UTP/STP Cat. 5/5E,6 Cable EIA/TIA-568 100-ohm (100m)
1000Base-T	4-pair UTP/STP Cat. 5E,6 Cable EIA/TIA-568 100-ohm (100m)
Product Performance
Switching Capacity	96 Gbps
Forwarding Capacity	71.4 Mpps
Forwarding Mode	Store and Forward
Packet Buffer Memory	16 Mbit
CPU Memory	2G Mbit
Flash Memory	256 Mbit
Flash Memory	16 K
Jumbo Frame	12 K B
VLAN Quantity	4K
ACL Table	512
L3 Interface	32
Port Queue	8
Physical Properties

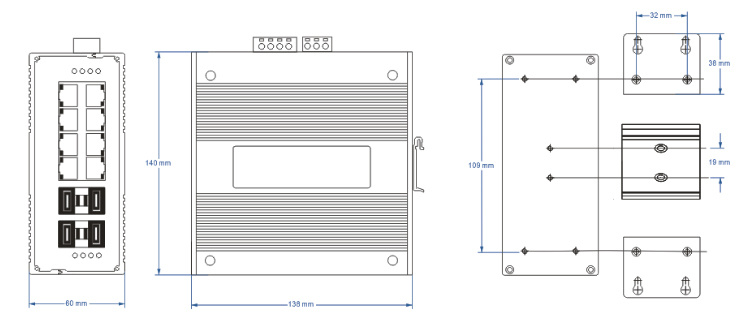

Dimensions	140x138x40mm
Weight	1.5KG
Operating Temperature	-40 to 75 ℃
Storage Temperature	-40 to 85 ℃
Operating Humidity	5 to 95% Non-condensing
Voltage Input Range	12 -57 V D C
Maximum Power Consumption	15W
EMC Safety	FCC, CE, RoHS
Reliability	MTBF200,000
Port Configuration
Enable and Disable	Supports control enable and disable
Auto-Negotiation	Supports forced port mode and speed
Flow Control	Supports IEEE802.3x Full Duplex Supports half-duplex backpressure
Storm Control	Supports broadcast, multicast and DLF Packet Rate Limiting
Port Mirroring	Supports multi-to-one mirroring
Rate Limiting	Supports port input and output rate limiting
Link Aggregation	Supports manual link aggregation Supports LACP Maximum 8 maximum aggregation groups, each aggregation group contains a maximum of 8 ports
Integration Strategy	Source MAC / Destination MAC / Source Destination MAC Source IP / Destination IP / Source Destination IP
Port Protection	Each port can be configured as a protected port isolated from each other
MAC Configuration
MAC Address Table Management	Supports
Transmission Mode	Supports IVL Transmission Mode
Static MAC Address	Supports
MAC Binding	Supports
MAC Address Filter	Supports
MAC Quantity Limit	Supports limiting the number of addresses learned per port MAC Number of Addresses
VLAN Configuration
Based 802.1Q on VLAN	Supports
Based MAC on VLAN	Supports
Based IP on VLAN	Supports
Protocol-based VLAN	Supports
Voice VLAN	Supports
Guest VLAN	Supports
Dedicated VLAN	Supports
VLAN Mapping	Support 1:1 Mapping
Dual VLAN Tag	Supports basic QinQ
Reliability Protocol
Spanning Tree	Supports STP/RSTP/MSTP
BPDU Protection	Supports
BPDU Filter	Supports
Port Loop Detection	Supports
EAPS Protocol	Supports RFC3619
LLDP Protocol	Supports LLDP and LLDP-MED
UDLD Protocol	Fully compatible CISCO on UDLD Protocol
Host Routing
Static ARP	Supports
Static Routing	Supports
Multicast
Static Multicast MAC Address	Supports
IGMP SNOOPING	Supports
MVR	Supports
GMRP	Supports
Access Control List ( ACL )
Standard-based IP	Supports
Extended-based IP	Supports
Based MAC IP	Supports
Based MAC ARP	Supports
Time-based	Supports
Port Filtering	Supports
Quality of Service ( QoS )
Scheduling Mode	Supports WRR , SP, WFQ
Port-based sorting	Supports
Based 802.1p sorting	Supports
Based DSCP ( DiffServ ) sorting	Supports
Based ACL Data stream sorting	Supports
QoS Policy	Supports mapping packets to corresponding output queues Supports modifying packet COS and DSCP flags Data stream support limits Supports data stream statistics Supports data stream mirroring
Safety
Administrative Security	Supports start and end TELNET ， WEB and SNMP Service Supports TELNET ， WEB and SNMP With standard IP ACL Service binding Supports control TELNET number of users
CPU Protection	Switch self-protection, prohibiting traffic attacks
IP-MAC Address Binding	Supports static configuration IP ， MAC and binding between ports
AAA	Supports 802.1x Protocol Supports RADIUS Protocol Supports RADIUS Server authentication, authorization, and accounting Supports based on MAC on 802.1X Authentication. Supports 802.1x Guest VLAN
DHCP Monitoring	Supports dynamic ARP binding to prevent ARP spoofing Supports dynamic IP ， MAC Port Binding Supports fixed port connection DHCP Server, preventing private connections DHCP Server
Prevention ARP spoofing	Supports manual configuration based on MAC ARP on ACL rules, preventing ARP spoofing Supports DHCP Snooping function, when DHCP obtaining IP address, dynamically binding ARP and port, to prevent ARP spoofing
Management function
CLI Management	Supports serial port management Supports TELNET Management Supports SSH Management
WEB Management	Supports
SNMP Management	Supports SNMP Protocol Supports SNMP TRAP Supports standard and proprietary MIB
User Management	Supports multi-user management
Display CPU Utilization	Supports
Displays memory utilization	Supports
Log Management	Supports
RMON	Supports RMON 1,2,3,9 Group
Configuration Download / Upload	Supports
Firmware Upgrade	Supports
Timer Management	Supports local timer management Supports SNTP Protocol to obtain clock
Debugging Tools
PING	Supports
Tracing	Supports
TELNET Client	Supports
Packaging
Industrial Switch	1pcs
User Manual	1pcs
DB9 to RJ45 Cable	1pcs

Switch Model
IDS 5008F4	Three-layer managed 8-port Gigabit rail-type industrial switch with 4 10 Gigabit SFP+ ports
SFP modules
GSFP-RJ45	1000M SFP modules ', RJ45 port
GSFP-M-LC-R5	1000M SFP modules , Multi-mode ', 500M, 850nm, LC
GSFP- S -LC-20	1000M SFP modules , Single-mode , 2 0km, 1310nm, LC
GSFP- S -LC-40	1000M SFP modules , Single-mode ', 40km, 1310nm, LC
GSFP- S -LC-80	1000M SFP modules , Single-mode ', 80km, 1550nm, LC
