IRS3016F4 16 Gigabit RJ45 ports + 4 Gigabit SFP slots, Layer 3 managed industrial rack-mount switch

Three-layer rack-mountable industrial 24-port Gigabit switch with 4 Gigabit SFP uplink ports

¥ 0

Quantity

Add to cart

Buy now

Overview

Hardware Features

Firmware Features

Applications

Order Information

Download

The IRS3016F4 is a three-layer managed industrial-grade rack-mount switch independently developed by Shenzhen Hi-Net Technology Co., Ltd. The IRS3016F4 provides 16 Gigabit electrical ports and 4 Gigabit SFP optical ports, supporting IEEE802.3/802.3u/802.3x, IEEE802.3ab, IEEE802.3z, and MDI/MDI-X auto-adaptive RJ45 ports. This device supports advanced management functions such as SNMP, telnet, and CLI, as well as a visual WEB interface, providing a cost-effective industrial Ethernet communication solution. The product boasts high availability, reliability, and security to ensure the transmission of critical data. The IRS3016F4 industrial switch offers a wide range of AC power input. Structurally, the IRS3016F4 industrial switch fully considers industrial installation needs, using a standard 19-inch aluminum shell and a fanless design. This product meets the standards of the Public Security Ministry's three institutes, FCC, and CE standards, and meets industrial grade 4 design requirements, providing industrial data communication Stable, secure, and reliable network data transmission; widely applicable in safe city, rail transit, expressways, power distribution networks, ports and terminals, and wastewater treatment.

Product Features

● Complies with IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae

● Supports 16 10/100/1000TX RJ45 ports and 4 1000M SFP optical ports

● High backplane bandwidth of 40Gbps

● Supports standard IP / extended IP / MAC IP / ARP ACL

● IGMP snooping and IGMP query modes for multimedia applications

● Port mirroring and bandwidth control

● IEEE802.3x flow control

● Supports port-based VLAN / 802.1Q tagged VLAN

● Supports IEEE802.3ad port trunking via LACP

● Supports spanning tree protocol IEEE 802.1d

● Supports IEEE 802.1p Quality of Service

● Supports IEEE 802.1x user authentication

● Supports broadcast storm filter

● Supports DHCP server and client

● Supports system event logs

● Supports command-line interface management

● IEEE 802.3ad static load balancing configuration and LACP dynamic configuration

● Protocols: IGMP Snooping v1, v2, v3 devices, GMRP, GVRP, SNMPv1, v2c, v3, DHCP Snooping, BootP TFTP/Xmodem, SNTP, RMON, HTTP, Telnet, SSH, Syslog, Option 81/82, LLDP; MIB: MIB-II(RFC1213), Bridge MIB(RFC1493), RSTP MIB, RMON MIB(RFC1724) Group 1, 2, 3, 9, OSPF MIB(RFC1850), SNMP v. 2 MIB (RFC 1907), IF MIB (RFC2233), RFC 2571,RFC 2572,RFC 2573，RFC 2574，RFC 2570 ，RFC 2674

● Management via Web / SNMP / Telnet / console

● Surge protection for power ports and data ports

● Wide power input: 100~240VAC

● Wide operating temperature: -40~75℃

● IP40 aluminum shell

● MTBF 200,000 hours

● EMI: FCC Part 15. CISPR(EN55022) class A

● EMS: EN61000-4-2(ESD), EN61000-4-3(RS)

● EN61000-4-4(EFT), EN61000-4-5(Surge)

● EN61000-4-6(CS), EN61000-4-6(Common Mode Conduction)

● Industrial: IEC6100-6-2

● Railway: EN50155.EN50121-4

● Transportation: NEMA TS-2

● Coal: GB/T3836.1/2/3/4

● Mechanical: IEC68-2-6/27/32

● Warranty: 5 years

Product Attributes
Network Interface	16 10/100 /1000M RJ45 Port . 4 1000M SFP Optical Port .
Management Interface	Console Port
LED Indicator Light	Power , Port Rate, Port Con nection
Network Cable Medium
10Base-T	2-pair UTP/STP Cat. 3,4,5/5E,6 Category Cable EIA/TIA-568 100-ohm (100m)
100Base-T	2-pair UTP/STP Cat. 5/5E,6 Category Cable EIA/TIA-568 100-ohm (100m)
1000Base-T	4-pair UTP/STP Cat. 5E,6 Category Cable EIA/TIA-568 100-ohm (100m)
Product Performance
Switching Capacity	40 Gbps
Forwarding Capacity	29.76 Mpps
Forwarding Mode	Store and Forward
Packet Buffer Memory	12 Mbit
CPU Memory	1G bit
Flash Memory	512 Mbit
Flash Memory	16 K
Jumbo Frame	16K
VLAN Quantity	4K
ACL Table	512
L3 Interface	32
Port Queue	8
Physical Properties

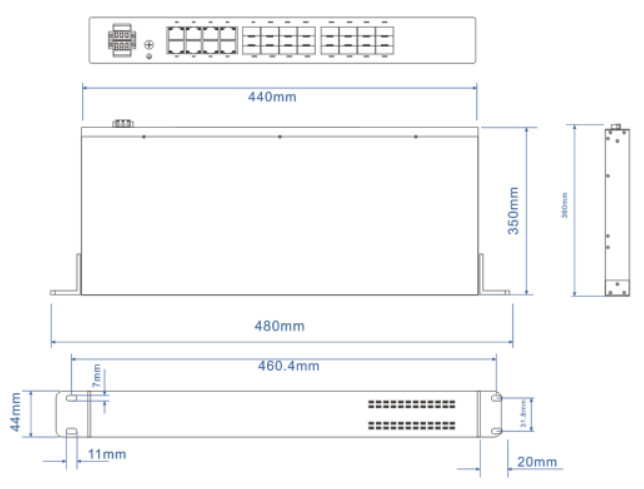

Dimensions	440x350x44 mm
Weight	3.5KG
Operating Temperature	-40 to 75 ℃
Storage Temperature	-4 0 to 85 ℃
Operating Humidity	5 to 95% Non-condensing
Voltage Input Range	100-240 V A C
Maximum Power Consumption	35W
EMC Safety	FCC, CE, RoHS
Reliability	MTBF200,000
Port Configuration
Enable and Disable	Supports control enable and disable
Auto-negotiation	Supports forced port mode and speed
Flow Control	Support IEEE802.3x Full Duplex Supports half-duplex backpressure
Storm Control	Supports broadcast, multicast and DLF Packet Rate Limiting
Port Mirroring	Supports many-to-one mirroring
Rate Limiting	Supports port input and output rate limiting
Link Aggregation	Supports manual link aggregation Support LACP Maximum 8 maximum aggregation groups, each aggregation group contains a maximum of 8 ports
Integration Strategy	Source MAC / Destination MAC / Source Destination MAC Source IP / Destination IP / Source Destination IP
Port Protection	Each port can be configured as a protected port isolated from each other
MAC Configuration
MAC Address Table Management	Support
Transmission Mode	Support IVL Transmission Mode
Static MAC Address	Support
MAC Binding	Support
MAC Address Filter	Support
MAC Quantity Limit	Supports limiting the number of addresses learned by each port MAC Number of Addresses
VLAN Configuration
Based on 802.1Q of VLAN	Support
Based on MAC of VLAN	Support
Based on IP of VLAN	Support
Protocol-based VLAN	Support
Voice VLAN	Support
Visitor VLAN	Support
Dedicated VLAN	Support
VLAN Mapping	Support 1:1 Mapping
Dual VLAN Tag	Supports basic QinQ
Reliability Protocol
Spanning Tree	Support STP/RSTP/MSTP
BPDU Protection	Support
BPDU Filter	Support
Port Loop Detection	Support
EAPS Protocol	Support RFC3619
LLDP Protocol	Support LLDP and LLDP-MED
UDLD Protocol	Fully compatible CISCO of UDLD Protocol
Host Routing
Static ARP	Support
Static Routing	Support
Multicast
Static Multicast MAC Address	Support
IGMP SNOOPING	Support
MVR	Support
GMRP	Support
Access Control List ( ACL )
Standard-based IP	Support
Extended-based IP	Support
Based on MAC IP	Support
Based on MAC ARP	Support
Time-based	Support
Port Filtering	Support
Quality of Service ( QoS )
Scheduling Mode	Support WRR , SP, WFQ
Port-based sorting	Support
Based on 802.1p sorting	Support
Based on DSCP ( DiffServ ) sorting	Support
Based on ACL Data stream sorting	Support
QoS Policy	Supports mapping packets to corresponding output queues Supports modifying packet COS and DSCP flags Data stream support limits Supports data stream statistics Supports data stream mirroring
Safety
Administrative Security	Supports start and end TELNET ， WEB and SNMP Service Support TELNET ， WEB and SNMP With standard IP ACL Service binding Supports control TELNET Number of users
CPU Protection	Switch self-protection, prohibiting traffic attacks
IP-MAC Address Binding	Supports static configuration IP ， MAC and binding between ports
AAA	Support 802.1x Protocol Support RADIUS Protocol Support RADIUS Server authentication, authorization, and accounting Supports based on MAC of 802.1X Authentication. Support 802.1x Visitor VLAN
DHCP Monitoring	Supports dynamic ARP Binding to prevent ARP Deception Supports dynamic IP ， MAC Port Binding Supports fixed port connections DHCP Server, preventing private connections DHCP Server
Prevention ARP Deception	Supports manual configuration based on MAC ARP of ACL rules, preventing ARP Deception Support DHCP Snooping function, when DHCP obtaining IP address, dynamically binding ARP and port, to prevent ARP Deception
Management function
CLI Management	Supports serial port management Support TELNET Management Support SSH Management
WEB Management	Support
SNMP Management	Support SNMP Protocol Support SNMP TRAP Supports standard and proprietary MIB
User Management	Supports multi-user management
Display CPU Utilization	Support
Displays memory utilization	Support
Log Management	Support
RMON	Support RMON 1,2,3,9 Group
Configuration Download / Upload	Support
Firmware Upgrade	Support
Clock Management	Supports local timer management Support SNTP Protocol to obtain clock
Debugging Tools
PING	Support
Tracing	Support
TELNET Client	Support
Packing List
Rack-mountable industrial-grade switch	1 Units
User Manual	1 Book
Use CD	1 Piece
DB9 to RJ45 Cable	1 Pieces

Switch Model
I RS3016F4	16 Gigabit rack-mount industrial switch with 4 Gigabit SFP ports
SFP modules
GSFP-RJ45	1000M SFP modules 'RJ45 port
GSFP-M-LC-R5	1000M SFP modules , Multi-mode ', 500M, 850nm, LC
GSFP- S -LC-20	1000M SFP modules , Single-mode , 2 0km, 1310nm, LC
GSFP- S -LC-40	1000M SFP modules , Single-mode ', 40km, 1310nm, LC
GSFP- S -LC-80	1000M SFP modules , Single-mode ', 80km, 1550nm, LC
