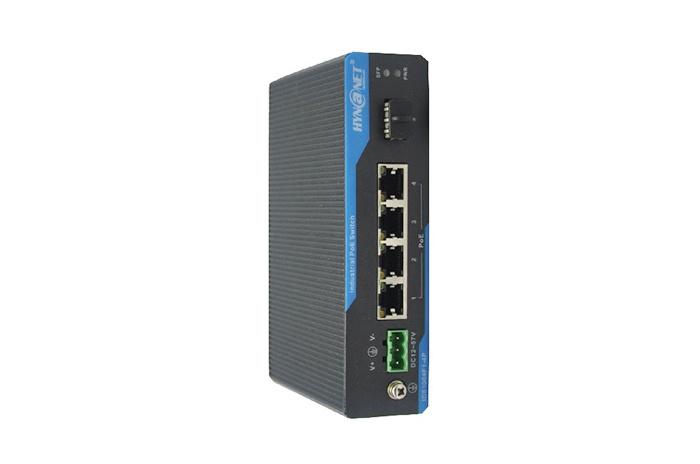

IDS1004F1-4P 4-port Gigabit RJ45 + 1-port Gigabit SFP slot rack-mount PoE industrial switch

4-port Gigabit PoE rail-mounted industrial Ethernet switch with one Gigabit SFP uplink port

¥ 0

Quantity

Add to cart

Buy now

Overview

Hardware Features

Firmware Features

Applications

Order Information

Download

The IDS1004F1-4P series is an industrial-grade rail-type POE switch independently developed by Shenzhen Hi-Net Technology Co., Ltd. The IDS1004F1-4P provides four 100Mbps electrical ports, one 100Mbps SFP port, and is compatible with the IEEE802.3af and IEEE802.3at standards. Each electrical port supports a maximum 30W PoE power output and supports IEEE802.3/802.3u/802.3x, IEEE802.3ab, and MDI/MDI-X auto-adaptive RJ45 ports. The IDS1004F1-4P uses a high-strength IP30 protective shell, industrial-grade four-level EMC design, supports Auto-Negotiation adaptive technology, and comprehensive LED status indication, providing a flexible and stable solution for your Ethernet connection. The operating temperature of the IDS1004F1-4P industrial-grade POE switch is -40~75°C (wide temperature range), suitable for any industrial environment, and supports rail or wall-mounted installation, and can be easily placed in compact control boxes. It supports a wide range of power input (44~57V DC) to increase the reliability of the communication network. Based on industrial installation requirements, two installation modes are provided: DIN35 rail or wall-mounted. The IDS1004F1-4P industrial-grade POE switch is a plug-and-play industrial-grade device and a reliable solution for your industrial automation networking.

Product Features

● Compliant with IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3af, IEEE802.3at

● Supports 4 10/100TX RJ45 ports and 1x100M optical port

● Supports 4 PoE ports

● Total PoE power 120W

● High backplane bandwidth 1Gbps

● IEEE802.3x flow control

● Surge protection for power ports and data ports

● Wide power input: 44~57VDC

● Wide operating temperature: -40~75℃

● IP30 aluminum shell

● MTBF 200,000 hours

● EMI: FCC Part 15. CISPR(EN55022) class A

● EMS: EN61000-4-2(ESD), EN61000-4-3(RS)

● EN61000-4-4(EFT), EN61000-4-5(Surge)

● EN61000-4-6(CS), EN61000-4-6(Common Mode Conduction)

● Industrial: IEC6100-6-2

● Railway: EN50155.EN50121-4

● Transportation: NEMA TS-2

● Warranty: 5 years

Product Attributes
Network Interface	4 10/100 M RJ45 Port 1 100M Fiber Port
LED Indicator Light	Power Supply , Port Rate, Port Connection ， PoE
Copper Cable
10Base-T	2-pair UTP/STP Cat. 3,4,5/5E,6 Category Cable EIA/TIA-568 100-ohm (100m)
100Base-T	2-pair UTP/STP Cat. 5/5E,6 Category Cable EIA/TIA-568 100-ohm (100m)
Product Performance
Switching Capacity	1 Gbps
Forwarding Capacity	744K
Forwarding Mode	Store and Forward
Packet Buffer Memory	512K bit
MAC Address Table	1 K
PoE Total Power	120W
Physical Properties
Dimensions	150x100x32mm
Weight	0.5KG
Operating Temperature	-40 to 75 ℃
Storage Temperature	-4 0 to 85 ℃
Operating Humidity	5 to 95% Non-condensing
Voltage Input Range	44-57 V D C
High Power Consumption	Included PoE ：125W Not Included PoE ：5W
EMC Safety	FCC, CE, RoHS
Reliability	MTBF200,000 Hours
PoE
PoE Port	Port 1-4
PoE Standard	IEEE802.3af, IEEE802.3at
Per Port Maximum PoE Power	30W
PoE Voltage	52VDC
PoE Definition	V- (RJ45 Pin1,2), V+ (RJ45 Pin 3,6)
Packaging
Industrial PoE Switch	1pcs
User Manual	1pcs

Switch Model
IDS1004F1-4P	4 100M Rack-Mount Industrial Grade PoE Switch with one 100M port SFP Uplink Port
Optical Module
GSFP-RJ45	1000M Optical Module RJ45 Port
GSFP-M-LC-R5	1000M Optical Module , Multi-mode 500M, 850nm, LC
GSFP- S -LC-20	1000M Optical Module , Single-mode , 2 0km, 1310nm, LC
GSFP- S -LC-40	1000M Optical Module , Single-mode 40km, 1310nm, LC
GSFP- S -LC-80	1000M Optical Module , Single-mode 80km, 1550nm, LC
