IDS1604F1-4P 4 Gigabit RJ45 ports + 1 Gigabit SFP slot, rack-mountable PoE industrial switch
¥ 0
¥ 0
Overview
Hardware Features
Firmware Features
Applications
Order Information
Download
The IDS1604F1-4P series is a fully gigabit industrial-grade rail-mounted PoE switch independently developed by Shenzhen Hi-Net Technology Co., Ltd. The IDS1604F1-4P provides four gigabit electrical ports, one gigabit SFP port, and is PoE compatible with IEEE802.3af and IEEE802.3at standards. Each electrical port supports a maximum 30W PoE power output and supports IEEE802.3/802.3u/802.3x, IEEE802.3ab, IEEE802.3z, and MDI/MDI-X auto-adaptive RJ45 ports. The IDS1604F1-4P uses a high-strength IP30 protective shell, industrial-grade four-level EMC design, supports Auto-Negotiation adaptive technology, and comprehensive LED status indication, providing a flexible and stable solution for your Ethernet connection. The operating temperature of the IDS1604F1-4P industrial-grade PoE switch is -40~75°C (wide temperature range), suitable for any industrial environment, and supports rail or wall mounting, and can be easily placed in compact control boxes. It supports a wide range of power input (44~57V DC) to increase the reliability of the communication network. Based on industrial installation requirements, two installation modes are provided: DIN35 rail or wall mounting. The IDS1604F1-4P industrial-grade PoE switch is a plug-and-play industrial-grade device and a reliable solution for your industrial automation networking.
Product Features
● Compliant with IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at
● Supports 4 10/100/1000TX RJ45 ports and 1x1000M optical port
● Supports 4 PoE ports
● Total PoE power 120W
● High backplane bandwidth 10Gbps
● IEEE802.3x flow control
● Surge protection for power ports and data ports
● Wide power input: 44~57VDC
● Wide operating temperature: -40~75℃
● IP30 aluminum shell
● MTBF 200,000 hours
● EMI: FCC Part 15. CISPR(EN55022) class A
● EMS: EN61000-4-2(ESD), EN61000-4-3(RS)
● EN61000-4-4(EFT), EN61000-4-5(Surge)
● EN61000-4-6(CS), EN61000-4-6(Common Mode Conduction)
● Industrial: IEC6100-6-2
● Railway: EN50155.EN50121-4
● Transportation: NEMA TS-2
● Warranty: 5 years
|
Product Attributes |
|
|
Network Interface |
4 10/100 /1000M RJ45 Port 1 1000M Optical Port |
|
LED Indicator Light |
Power Supply , Port Rate, Port Connection ， PoE |
|
Copper Cable |
|
|
10Base-T |
2-pair UTP/STP Cat. 3,4,5/5E,6 Cable Type EIA/TIA-568 100-ohm (100m) |
|
100Base-T |
2-pair UTP/STP Cat. 5/5E,6 Cable Type EIA/TIA-568 100-ohm (100m) |
|
1000Base-T |
4-pair UTP/STP Cat. 5E,6 Cable Type EIA/TIA-568 100-ohm (100m) |
|
Product Performance |
|
|
Switching Capacity |
10 Gbps |
|
Forwarding Capacity |
7.44 Mpps |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
1 Mbit |
|
MAC Address Table |
8K |
|
PoE Total Power |
120W |
|
Physical Properties |
|
|

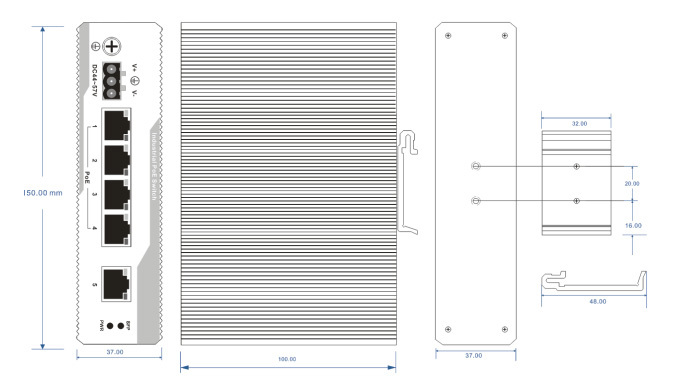

Dimensions |
150x100x32mm |
|
Weight |
0.5KG |
|
Operating Temperature |
-40 to 75 ℃ |
|
Storage Temperature |
-4 0 to 85 ℃ |
|
Operating Humidity |
5 to 95% Non-condensing |
|
Voltage Input Range |
44-57 V D C |
|
High Power Consumption |
Included PoE ：125W Not Included PoE ：5W |
|
EMC Safety |
FCC, CE, RoHS |
|
Reliability |
MTBF200,000 Hours |
|
PoE |
|
|
PoE Port |
Port 1-4 |
|
PoE Standard |
IEEE802.3af, IEEE802.3at |
|
Per Port Maximum PoE Power |
30W |
|
PoE Voltage |
52VDC |
|
PoE Definition |
V- (RJ45 Pin1,2), V+ (RJ45 Pin 3,6) |
|
Packaging |
|
|
Industrial PoE Switch |
1pcs |
|
User Manual |
1pcs |
|
Switch Model |
|
|
IDS1604F1-4P |
4 Full Gigabit Rail-Type Industrial Port PoE Switch with one Gigabit SFP Uplink Port |
|
Optical Module |
|
|
GSFP-RJ45 |
1000M Optical Module ', RJ45 Port |
|
GSFP-M-LC-R5 |
1000M Optical Module , Multi-mode ', 500M, 850nm, LC |
|
GSFP- S -LC-20 |
1000M Optical Module , Single-mode , 2 0km, 1310nm, LC |
|
GSFP- S -LC-40 |
1000M Optical Module , Single-mode ', 40km, 1310nm, LC |
|
GSFP- S -LC-80 |
1000M Optical Module , Single-mode ', 80km, 1550nm, LC |
