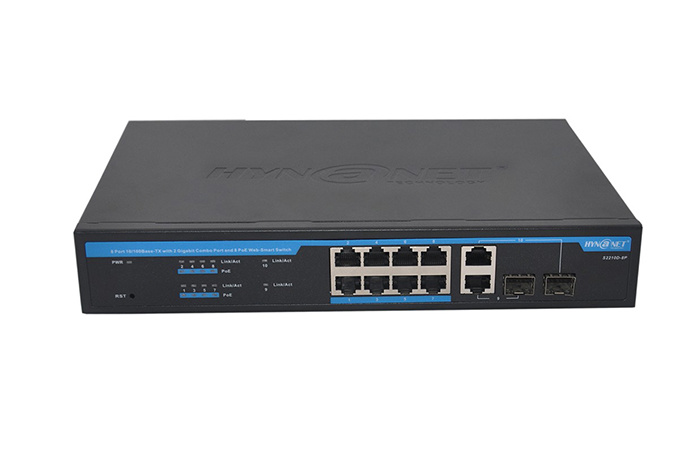

S2210D-P 8 100Mbps electrical ports + 2 Gigabit combo ports (RJ45/SFP) intelligent PoE switch

8-port 100Mbps intelligent PoE switch with 2 Gigabit combo ports (SFP/RJ45)

¥ 0

Quantity

Add to cart

Buy now

Overview

Hardware Features

Firmware Features

Applications

Order Information

Download

The S2210D-P is a new generation of intelligent PoE switches independently developed by Shenzhen Hi-Net Technology Co., Ltd. It is designed for IP metropolitan area networks and enterprise networks, meeting the needs of Ethernet multi-service carrying and various Ethernet access. It provides users with rich and flexible service features, effectively improving product operability, manageability, and business expansion capabilities, and has excellent lightning protection capabilities and security features. It also supports complete PoE (Power Over Ethernet) functions, which can provide -52V DC power to remote PD devices (such as IP Phone, WLAN AP, Security, Bluetooth AP, etc.) through network cables, realizing remote power supply for downstream PD devices. As a power supply PSE (Power Sourcing Equipment) device, it supports IEEE802.3af and IEEE802.3at power supply standards, supports PoE management, and users can flexibly configure whether the PoE port is powered.

The S2210D-P chassis height is a standard 1U eleven-inch chassis, supporting rack and desktop use, providing 8 100Mbps ports and 2 auto-switching Gigabit ports, and providing 8 PoE power supply ports. The software can configure PoE to control the PD device on/off based on time, which is environmentally friendly and energy-saving. In addition, the PoE has an automatic detection function to check whether the PD device is working properly, providing convenience for intelligent management of PD devices.

Product Features

● IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

● Provides 8 100Mbps electrical ports + 2 Gigabit optical-electrical multiplexing ports (RJ45 / SFP)

● Provides 8 PoE power supply ports

● Built-in power supply, optional 150W / 270W

● Up to 5.6 Gbps backplane bandwidth

● Supports IGMP snooping for multimedia applications

● Supports port mirroring and bandwidth control

● Supports IEEE802.3x flow control

● Supports port-based VLAN / 802.1Q Tag VLAN

● Supports IEEE802.3ad port trunking through LACP

● Supports spanning tree protocol IEEE802.1d / 802.1w / 802.1s

● Supports IEEE 802.1p service level

● Supports broadcast storm filter

● Supports DHCP client

● Web management

● CE class A, LVD, FCC, ROHS 2.0

Product Attributes
Network Interface	8 Hundred Megabit RJ45 Port 2 Number Gigabit optical and electrical multiplexing port （ RJ45 / SFP ）
Indicator lights	Power Light Port rate Light Port Link light ， POE Light
Product Performance
Backplane bandwidth	5.6 Gbps
Packet forwarding rate	4.17 Mpps
Forwarding mode	Store and forward
Packet buffer memory	2.75 Mbit
Packet buffer memory	4K
VLAN Quantity	4K (256 active)
PoE Total power	135 W / 255 W
Physical characteristics
Packaging size	275 x 200 x 44 mm
Weight	3KG
Operating temperature	0 to 40 ℃
Storage temperature	-20 to 70 ℃
Operating humidity	5 to 95% Non-condensing
Power supply method	100-240VAC, 50/60Hz
Maximum power consumption	POE Output includes : 15 0W / 270W Not included PoE Output :15 W
EMC Standard	FCC, CE, RoHS 2.0
Reliability	MTBF:200000 Hours
Po E Function
PoE Port	Port 1- 8
PoE Standard	IEEE802.3af, IEEE802.3at
Maximum per port POE Power	30W
PoE Voltage	52VDC
PoE Pin Definition	V- (RJ45 Pin1,2), V+ (RJ45 Pin 3,6)
PoE Open / Close control :	Each standard port configuration
PoE Current usage :	Displayed by standard port
PoE Power supply status :	Shows each standard port and total standard ports
PoE Table :	Each standard port configuration
PD Effective automatic check :	Each standard port configuration

Port configuration
Enable and disable	Support
Auto-negotiation	Support
Flow control	Support IEEE802.3x Full duplex Supports half-duplex backpressure
Storm control	Supports broadcast, multicast and DLF Packet rate limit
Port mirroring	Supports multi-to-one mirroring
Rate limit	Supports port input and output rate limiting
Link aggregation	Supports manual link aggregation Support LACP Maximum 3 Aggregation groups 2 Groups for Fast Ethernet ports, each group contains a maximum of 4 a port 1 group used for Gigabit Ethernet ports, each port contains a maximum of 2 a port
aggregation strategy	port number / source MAC / destination MAC / source destination MAC
MAC binding	Support
VLAN configuration
VLAN based on 802.1q	Support
port-based VLAN	Support
many-to-one VLAN	Support
reliability protocol
spanning tree	Support STP/RSTP/MSTP
port loop detection	Support
multicast
IGMP listen	Support
quality of service (QOS)
scheduling mode	supports first-in, first-out / high before low / weighted round robin
port-based sorting	Support
based on 802.1p sorting	Support
based on DSCP sorting ( DiffServ ）	Support
management function
WEB management	Support

packing list
Po E switch	1 unit
user manual	1 copy
use CD	1 piece
warranty card	1 copy
power cord	1 root
serial cable	1 root
angle iron	2 set
screws	4 pcs
foot pads	4 set

Switch Model
S2210D-8P-150	8 100M intelligent port PoE Switch with 2 gigabit uplink ports Total power 150W
S2210D-8P-270	8 100M intelligent port PoE Switch with 2 gigabit uplink ports Total power 270W
SF P Module
GSFP-RJ45	Gigabit SFP Module ' , , RJ45' port
GSFP-M-LC-R5	Gigabit SFP Module , Multi-mode ' , 500M, 850nm, LC'
GSFP- S -LC-20	Gigabit SFP Module , Single-mode ' , 20km, 1310nm , LC'
GSFP- S -LC-40	Gigabit SFP Module , Single-mode ' , 40km, 1310nm, LC'
GSFP- S -LC-80	Gigabit SFP Module , Single-mode ' , 80km, 1550nm, LC'
