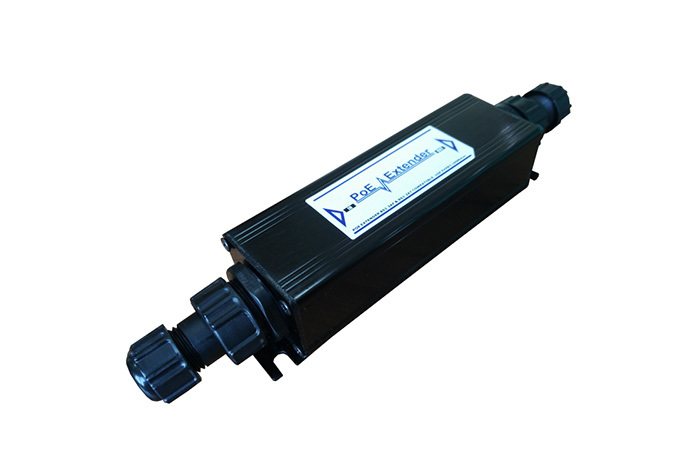

    IPX101 Waterproof 100Mbps Single-Channel POE Extender (1 input, 1 output)

    IPX101 is a small-sized, hundred-megabit, waterproof PoE extender independently developed by Shenzhen Hi-Net Technology Co., Ltd. This product extends the PoE signal from the original 100 meters to 200 meters by relaying the PoE signal from the PSE end.

    Ports Type :

    Mixed Port

    Uplink Ports :

    25G SFP28

    Downlink Ports :

    5G RJ45

    Port Count :

    8 Ports

    Management :

    Cloud

    PoE Type :

    Non-PoE


    ¥ 0

    ¥ 0

    Quantity
    -
    +

    Overview

    Hardware Features

    Firmware Features

    Applications

    Order Information

    Download

    IPX101是Shenzhen Hi-Net Technology Co., Ltd自主研发的小尺寸百兆防水型POE延长器,该产品通过将PSE端的PoE信号进行中继传输,把PoE信号从原有的100米延伸至200米,使PoE传输距离增加了1倍,支持10/100M自适应速率传输,支持IEEE802.3af或者IEEE802.3at供电标准,PoE最大输出功率15.4W或者30W. IP65防水型结构设计,产品小巧,适合挂墙,桌面使用,拓展户外POE产品的延展性的极佳选择。



    产品特性

    ● 符合IEEE802.3af以及IEEE802.3at标准

    ● 符合 10/100Base-T应用

    ● 1受电端口、1供电端口

    ● 无需外接电源,用POE电源直接供电

    ● 延长100米的POE传输信号

    ● 供电端口可选择1236或者4578供电标准

    ● 受电端口同时支持12/36和45/78两种线脚受电方式

    ● 低功耗<3W

    ● IP65防水等级

    ● 工作温度-40~75度

    ● 即插即用,无需管理

    Project

    Description

    Port

    Power receiving port: 1 x 10/100M auto-adaptive RJ45 port

    Power supplying port: 1 x 10/100M auto-adaptive RJ45 port

    Transmission Rate

    10/100 Mbps

    LED Indicator

    PoE, Port Rate, Port Connection

    POE Power Supply Pin

    1236 or 4578 optional

    POE Power Receiving

    Supports both 1236 and 4578 pins

    Interface Type

    Shielded RJ-45, EIA 568A and 568B

    Extended Transmission Distance

    100 meters

    Dimensions

    129mm (L) x 47mm (W) x 34mm (H)

    Operating Environment

    Operating Temperature: -40 to 75℃

    Operating Humidity: 10%-90%, non-condensing

    Storage Temperature: -50 to 85℃

    Storage Humidity: 5%-90%, non-condensing

    Waterproof Rating

    IP65

    POE Standard

    IEEE802.3at, IEEE802.3af

    RoHS Compliant, CE, FCC

    Electromagnetic Radiation Standard

    FCC Part 15, Class B

    Packaging

    IPX101 POE Extender

    User Manual

    Warranty Card

    Waterproof Network Interface
