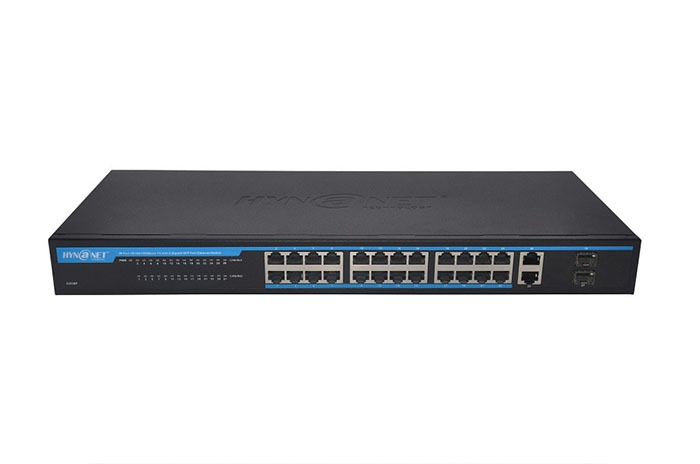

S2628R 26-port Gigabit RJ45 + 2-port 1G SFP slot Ethernet switch
¥ 0
¥ 0
Overview
Hardware Features
Firmware Features
Applications
Order Information
Download
● Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
● Provides 24 Gigabit ports, two independent Gigabit fiber ports, and two independent Gigabit electrical ports for uplink
● Dynamic LED indicators
● UTP ports support auto-negotiation, automatically adjusting transmission mode and speed
● Up to 56G backplane bandwidth
● IEEE 802.3x flow control, half-duplex uses Backpressure standard
● Supports surge protection for power and data ports
● 8K MAC address space
● Built-in 15W industrial-grade power supply
● Fanless design
● 19-inch rackmount design
● Passed FCC, CE class B testing
|
Attributes |
||
|
Port Configuration |
26 pcs 10/100/1000 Mbps RJ45 Ethernet Port 2 x 1Gbps SFP Port |
|
|
Indicator |
Power, Port Rate, Port Connection |
|
|
Performance |
||
|
Switching Capacity |
56 Gbps |
|
|
Packet Forwarding Rate |
41.7 Mpps |
|
|
Switching Mode |
Store and Forward |
|
|
Packet Buffer Storage |
4.1 Mbit |
|
|
MAC Address Table |
8 K |
|
|
Product Appearance Characteristics |
||
|
Dimensions |
440 x 200 x 44 mm |
|
|
Weight |
||
|
Operating Temperature |
0 to 40 ℃ |
|
|
Storage Temperature |
-10 to 70 ℃ |
|
|
Relative Humidity |
5 to 95% Noncondensing |
|
|
Power Input |
100-240VAC, 50/60Hz |
|
|
Power Consumption |
15 W |
|
|
Electromagnetic Compatibility and Safety |
FCC, CE, RoHS |
|
|
Reliability |
||
|
Packaging |
||
|
Ethernet Switch |
1pcs |
|
|
User Manual |
1pcs |
|
|
Power Cord |
1pcs |
|
|
Angle Iron |
2pcs |
|
|
Foot Pad |
4pcs |
|
|
Switch Model: |
|
|
S 2628R |
26 Gigabit RJ45 Ports + 2 pcs 1G SFP Fiber Optic Ethernet Switch |
|
SFP Modules |
|
|
GSFP-RJ45 |
1000M SFP Modules ', RJ45 Ports |
|
GSFP-M-LC-R5 |
1000M SFP Modules , Multi-mode ', 500M, 850nm, LC |
|
GSFP- S -LC-20 |
1000M SFP Modules , Single-mode , 2 0km, 1310nm, LC |
|
GSFP- S -LC-40 |
1000M SFP Modules , Single-mode ', 40km, 1310nm, LC |
|
GSFP- S -LC-80 |
1000M SFP Modules , Single-mode ', 80km, 1550nm, LC |
