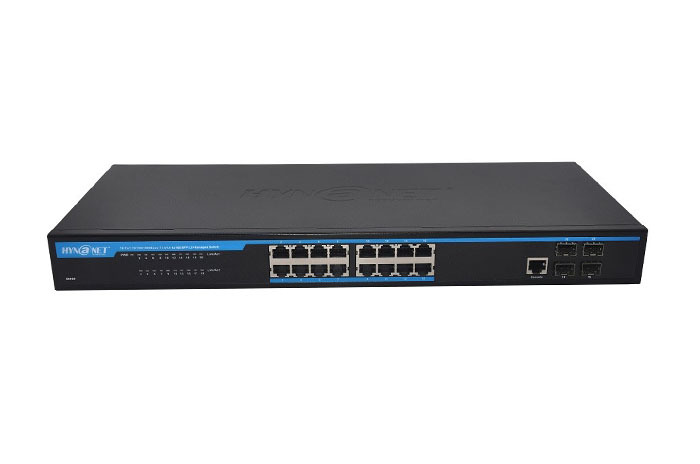

S5020 16 Gigabit RJ45 ports + 4 10G SFP+ slots Layer 3 managed Ethernet switch

16-port full gigabit managed switch with 4 10-gigabit SFP+ uplink ports

¥ 0

Quantity

Add to cart

Buy now

Overview

Hardware Features

Firmware Features

Applications

Order Information

Download

● Supports IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z

● Provides 16 10/100/1000 Base-TX ports and 4 10G SFP+ ports

● Built-in power supply

● Backplane bandwidth up to 112Gbps

● Supports MLD Snooping

● Supports standard IP/extended IP/MAC IP/ARP ACL

● Supports IGMP snooping for multimedia applications

● Supports port mirroring and bandwidth control

● Supports IEEE802.3x flow control

● Supports port-based VLAN and 802.1Q Tag VLAN

● Supports IEEE802.3ad port trunking via LACP

● Supports spanning tree protocol IEEE802.1d/802.1w/802.1s

● Supports IEEE 802.1p QoS

● Supports IEEE 802.1x user authentication

● Supports broadcast storm filtering

● Supports system event logging

● Supports command-line interface management

● Supports Web/SNMP/SSH/Telnet/Console management

Attributes
Port Configuration	16 Port 10/100/1000 Mbps RJ45 Ethernet Port 4 x 1 0 Gbps SFP+ Port
Management Port	Configuration Port
Indicators	Power, Port Rate, Port Connection
Performance
Switching Capacity	112 Gbps
Packet Forwarding Rate	83.32 Mpps
Switching Mode	Store and Forward
Packet Buffer Storage	16 Mbit
Running Memory	2G Mbit
Flash Memory	512 Mbit
MAC Address Table	16K
Maximum Jumbo Frame Size	12 K
VLAN Quantity	4K
Access Control List	512
L3 Interface	32
Number of Port Priority Queues	8
Product Appearance Features
Dimensions	440 x 200 x 44 mm
Weight
Operating Temperature	0 to 40 ℃
Storage Temperature	-10 to 70 ℃
Relative Humidity	5 to 95% Noncondensing
Power Input	100-240VAC, 50/60Hz
Power Consumption	30W
Electromagnetic Compatibility and Safety	FCC, CE, RoHS
Reliability
Port Configuration
Port Shutdown and Activation		Supports port shutdown and activation control
Port Auto-Negotiation		Supports forced port and rate
Port Flow Control		Supported IEEE802.3x Full Duplex Flow Control Supports backpressure, half-duplex flow control
Broadcast Storm Control		Supports broadcast, multicast and DLF Packet Rate Limiting
Port Mirroring		Supports multi-to-one port mirroring
Port Rate Limiting		Supports input and output port rate limiting
Link Aggregation	Supports manual link aggregation Supports Link Aggregation Control Protocol Maximum Support 8 Group aggregated links, maximum number of aggregated ports per group up to 8 个
Aggregation Strategy	Source MAC Address / Destination MAC Address / Source Destination MAC Address Source IP Address / Destination IP Address / Source Destination IP Address
Protected Port	Each port can be configured as a mutually isolated protected port
MAC Address Configuration
Management MAC Address Table	Supported
Transmission Mode	Supported IVL Transmission Mode
Static MAC Address Table	Supported
MAC Address Binding	Supported
MAC Address Filtering	Supported
MAC Learning Control	Supports port control MAC Number of learned entries
VLAN Configuration
Based on 802.1 Q 的 VLAN	Supported
Based on MAC Address-based VLAN	Supported
Based on IP Address-based VLAN	Supported
Protocol-based VLAN	Supported
Guest VLAN	Supported
Private VLAN	Supported
Reliability Protocol
Spanning Tree Protocol	Supported STP/RSTP/MSTP
BPDU Protection	Supported
BPDU Filtering	Supported

Port Loop Detection	Supported
EAPS Protocol	Supported RFC3619
LLDP Protocol	Supported LLDP and LLDP-MED
UDLD Protocol	Fully Compatible CISCO 的 UDLD Protocol
Host Routing
Static ARP	Supported
Static Routing	Supported
Multicast
Static Multicast MAC Address	Supported
IGMP Snooping	Supported
MVR	Supported
GMRP	Supported
Access Control List
Based on IP Standard ACL	Supported
Based on IP Extended ACL	Supported
Based on MAC Address IP Standard ACL	Supported
Based on MAC Address ARP Protocol ACL	Supported
Time-based	Supported
Port-based Filtering	Supported
QoS
Scheduling Mode	Supported WRR , SP, WFQ
Port Ordering	Supported
Based on 802.1p Ordering	Supported
Based on DSCP Ordering	Supported
Security Performance
Administrative Security	Supports Start and End TELNET, WEB and SNMP Service Supported TELNET, WEB and SNMP Service Binding Standard IP ACL Supports Control TELNET Number of Users
CPU Protection	Switch Self-Protection , Prevent Flow Attacks
IP-MAC Address Binding	Supports Static Configuration IP, MAC and Port Binding
AAA	Supported 802.1x Protocol Supported RADIUS Protocol Supports Remote Authentication Dial-In User Service Protocol Supports Based on MAC Address-based 802.1X Authentication Supported 802.1x Guest VLAN

DHCP Snooping	Supports Dynamic Binding ARP Prevent ARP Spoofing Supports Dynamic IP ， MAC Port Binding Supports Fixed Port Connection DHCP Server, Prevent Private Connection DHCP Server
Prevent ARP Spoofing Attack	Supports Manual Configuration Based on MAC ARP 的 ACL Rules, Prevent ARP Spoofing Supported DHCP Snooping Function, When DHCP Obtain IP Address, Dynamic Binding ARP and Port, to Prevent ARP Spoofing
Management Features
CLI Management	Supports Serial Port Management Supported TELNET Management Supported SSH Management
WEB Management	Supported
SNMP Management	Supported SNMP Protocol Supported SNMP TRAP Supports Standard and Private MIB
User Management	Supports Multi-user Management
Display CPU Utilization	Supported
Display RAM Utilization	Supported
Login Management	Supported
Upload and Download Configuration	Supported
Firmware Upgrade	Supported
Timer Management	Supports Local Timer Management Supported SNMP Protocol Acquisition Clock
Troubleshooting Tools
PING	Supported
Route Tracing	Supported
Remote Login Client	Supported
Packaging
Ethernet Switch	1pcs
User Manual	1pcs
Power Cord	1pcs
Serial Cable	1pcs
Angle Iron	2pcs
Foot Pad	4pcs

Switch Model:
S5020	16 Gigabit RJ45 ports + 4 pcs 10 G SFP+ Managed Ethernet Switch with fiber ports
S5020 HV	16 Gigabit RJ45 ports + 4 pcs 10 G SFP+ Managed Ethernet Switch with fiber ports (6kV Surge Protection )
SFP modules
GSFP-RJ45	1000M SFP modules ', RJ45 ports
GSFP-M-LC-R5	1000M SFP modules , Multi-mode ', 500M, 850nm, LC
GSFP- S -LC-20	1000M modules , Single-mode , 2 0km, 1310nm , LC
GSFP- S -LC-40	1000M SFP modules , Single-mode ', 40km, 1310nm, LC
GSFP- S -LC-80	1000M SFP modules , Single-mode ', 80km, 1550nm, LC
XGSFP-RJ45	10G SFP modules ', RJ45 ports
X GSFP-M-LC-01	10G SFP modules , Multi-mode ', 500M, 850nm, LC
X GSFP- S -LC-20	10G SFP modules , Single-mode , 2 0km, 1310nm , LC
X GSFP- S -LC-40	10G SFP modules , Single-mode ', 40km, 1310nm, LC
X GSFP- S -LC-80	10G SFP modules , Single-mode ', 80km, 1550nm, LC
