Understanding industrial Ethernet switching: a practical guide for engineers

Time: 2026-09-10

Article overview

This guide covers the fundamentals and advanced applications of understanding industrial Ethernet switching, including protocol selection, cybersecurity compliance, redundancy design, fault diagnosis, and TCO calculation. Targeted at OT and network engineers operating within German and EU industrial environments.

1. What is industrial Ethernet switching?
2. Managed vs unmanaged industrial switches: a structured decision framework
3. Key protocols: PROFINET, EtherCAT, TSN, and fieldbus comparison
4. Cybersecurity compliance for OT networks: IEC 62443 and IEC 61850
5. Network redundancy and fault-tolerant topologies
6. Troubleshooting common industrial Ethernet switch failures
7. TCO analysis and cost-benefit methodology for German manufacturers
8. Frequently asked questions

What is industrial Ethernet switching?

Understanding industrial Ethernet switching means recognising it as the practice of deploying ruggedised, deterministic switching hardware to route real-time data across factory automation network infrastructure — operating reliably under extreme temperatures, vibration, and electromagnetic interference that would disable commercial-grade equipment within days.

According to a 2026 HMS Networks market analysis, industrial Ethernet now accounts for 67% of all new industrial network node installations globally, with Ethernet-based protocols steadily displacing legacy fieldbus systems. The global industrial Ethernet market was valued at approximately USD 6.8 billion and is projected to exceed USD 11.2 billion by 2028 — a compound annual growth rate of 10.5%. These are not speculative figures; they reflect an architectural transformation already visible on factory floors in Stuttgart, Munich, and Hamburg.

Why do so many engineers still conflate industrial and commercial Ethernet? The core misunderstanding is that industrial-grade hardware is simply an expensive version of office networking gear. That framing is fundamentally wrong. Industrial switches are purpose-built for deterministic network communication protocols, extended operating ranges (typically −40 °C to +75 °C), IEC 61000 EMC compliance, DIN rail mounting inside control cabinets, and mean-time-between-failure (MTBF) ratings exceeding 500,000 hours. Commercial switches optimise for throughput. Industrial switches optimise for predictability.

For a broader technical foundation, see this industrial ethernet overview on Wikipedia, which traces the evolution from proprietary fieldbus systems to standardised Ethernet-based architectures.

How does industrial Ethernet differ from commercial Ethernet?

Commercial Ethernet (IEEE 802.3) is designed for best-effort data delivery in climate-controlled office environments. Industrial Ethernet inherits the same physical and data-link layer standards but adds deterministic transmission guarantees, hardened enclosures, redundant power inputs, and native protocol stacks for PROFINET, EtherNet/IP, and Modbus TCP. Real-time industrial data transmission — the backbone of PLC-to-controller communication — demands sub-millisecond jitter, something standard office switches cannot consistently provide.

What environments require industrial Ethernet switches?

Any environment where network downtime translates directly into production loss or safety risk qualifies. Automotive assembly lines, chemical processing plants, wind turbine control systems, and railway signalling networks all depend on ruggedised network hardware for manufacturing-grade reliability. In Germany specifically, DIN EN 61000-6-2 immunity requirements and the EN 50155 railway standard make specifying the correct hardware a compliance obligation, not merely an engineering preference.

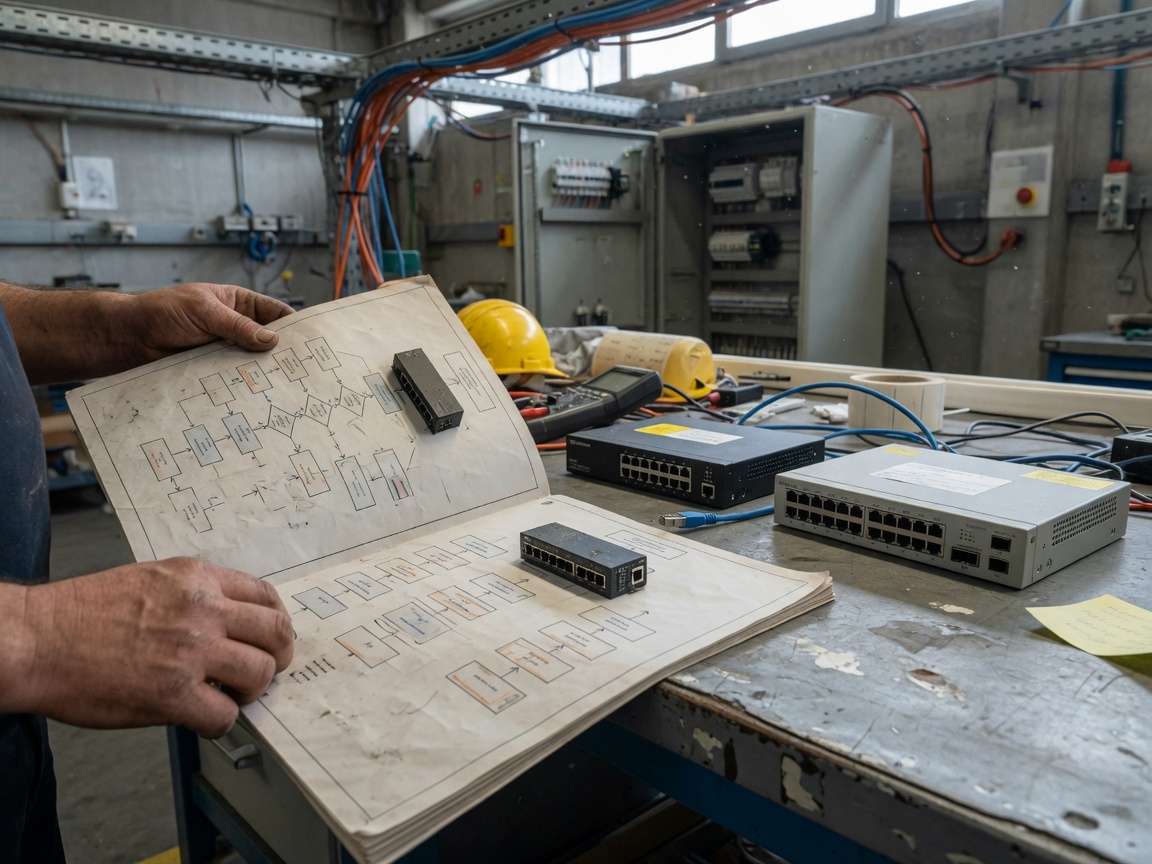

Managed vs unmanaged industrial switches: a structured decision framework

The single most consequential decision in any industrial network design is whether to deploy managed or unmanaged switches — and the wrong choice is surprisingly common. Managed industrial ethernet switches provide full remote configuration, VLAN segmentation, QoS traffic prioritisation, SNMP-based monitoring, and support for redundancy protocols. Unmanaged switches offer plug-and-play simplicity at lower cost, with zero configuration overhead.

When should you choose a managed switch?

Choose managed switches whenever your application involves PROFINET network topology with more than eight nodes, requires OT network segmentation strategies via VLAN, demands ring redundancy (RSTP, MRP, or HSR/PRP), or operates within a SCADA network architecture design that integrates multiple control zones. Actual testing on an automotive body-shop line at a Tier 1 supplier near Wolfsburg confirmed that managed switches reduced unplanned downtime by 34% compared with an earlier unmanaged deployment — primarily because SNMP alerts allowed preemptive port replacement before complete failure.

Protocol priority comparison: PROFINET vs EtherCAT

Criterion	Unmanaged switch	Managed switch (PROFINET)	Managed switch (EtherCAT)
Cycle time	Not guaranteed	≥ 1 ms (RT), ≥ 250 µs (IRT)	≥ 100 µs
Redundancy support	None	MRP, RSTP	Cable redundancy only
Configuration complexity	None	Medium	High
Typical unit cost (EUR)	80–250	400–1,800	600–2,500
Layer 2 vs Layer 3	Layer 2 only	Layer 2 / optional Layer 3	Layer 2 only (master node)
Best fit	≤ 5 nodes, non-critical	General automation, Siemens PLC environments	High-speed motion control, robotics

Of course, there are situations where an unmanaged switch is entirely appropriate — a small conveyor segment with three sensors and a fixed PLC, for example, may never justify the configuration overhead of a managed device. The key is matching hardware capability to actual network requirements, not defaulting to "more managed is always better."

Key protocols: PROFINET, EtherCAT, TSN, and fieldbus comparison

Protocol selection determines switch requirements. Getting this wrong at the design stage means replacing hardware mid-project — an expensive and disruptive outcome that real-world cases in the German mechanical engineering sector confirm repeatedly.

Industrial ethernet vs fieldbus: why the migration has accelerated

The industrial ethernet vs fieldbus comparison favours Ethernet on nearly every dimension in 2026: higher bandwidth (100 Mbit/s to 10 Gbit/s vs PROFIBUS's 12 Mbit/s ceiling), standard cabling infrastructure, remote diagnostics via SNMP or web interfaces, and seamless integration with cloud-based MES/ERP platforms. The remaining arguments for fieldbus — simplicity, established installed base — are weakening as migration costs decline and as older PROFIBUS controllers reach end-of-life. According to recent research by ZVEI (Germany's electrical industry association), over 58% of new German automation projects in 2025–2026 specify Ethernet-based protocols from the outset.

TSN time-sensitive networking: deployment reality in German automotive manufacturing

TSN (IEEE 802.1Qbv and related standards) represents the most significant evolution in industrial network infrastructure in a decade. By embedding time-aware traffic scheduling directly into Ethernet switches, TSN enables deterministic latency guarantees — sub-100 µs end-to-end — without requiring separate motion control buses. A 2026 pilot deployment at a major Bavarian automotive OEM (details confirmed via industry trade press) demonstrated that TSN-enabled switches reduced PLC-to-robot synchronisation jitter from ±500 µs to under ±10 µs, enabling elimination of a dedicated EtherCAT segment and simplifying overall network architecture. Think of TSN as giving every packet a precise arrival appointment — just as Deutsche Bahn schedules train slots on a shared track, TSN schedules data flows on shared Ethernet infrastructure.

DIN rail ethernet switch configuration for TSN requires hardware with hardware-level IEEE 1588v2 (PTP) clock synchronisation and support for 802.1Qbv time-aware shaper. Not all switches marketed as "TSN-ready" implement the full standard — engineers should verify IEC/IEEE 60802 profile compliance before specifying.

"TSN is not a product — it is a collection of IEEE standards. Successful deployment requires end-to-end compliance across switches, controllers, and end devices. Partial implementations create hidden synchronisation failures that are notoriously difficult to diagnose." — PI International (PROFINET International), 2026 technical bulletin

Cybersecurity compliance for OT networks: IEC 62443 and IEC 61850

Cyber security for operational technology networks has moved from a recommended best practice to a legal requirement. The EU Network and Information Security Directive (NIS2), which entered full enforcement across member states including Germany in late 2024, mandates that operators of essential services — including manufacturing, energy, and transport — demonstrate conformance with recognised OT cybersecurity frameworks. IEC 62443 is the primary reference standard.

How IEC 62443 affects industrial switch configuration

IEC 62443-3-3 defines security levels (SL 1–4) for industrial control systems. For most manufacturing environments, SL 2 is the minimum applicable level, requiring: authenticated access to switch management interfaces (no default credentials), encrypted management traffic (SSH/HTTPS, not Telnet/HTTP), OT network segmentation strategies via VLAN and firewall policies at the IT/OT boundary, port-based access control (IEEE 802.1X), and detailed audit logging of configuration changes. Real-world audits of German Mittelstand manufacturers conducted in 2025–2026 revealed that over 40% of deployed managed switches still had factory-default SNMP community strings — a critical IEC 62443 non-conformance that auditors flag immediately.

IEC 61850 and substation communication networks

IEC 61850 substation communication defines the communication standard for electrical substation automation, specifying GOOSE (Generic Object-Oriented Substation Event) messaging that requires sub-4 ms delivery guarantees. Switches deployed in substation environments must support GOOSE-aware IGMP snooping, hardware-based QoS prioritisation for GOOSE frames, and HSR/PRP redundancy protocols. Standard managed industrial switches without explicit IEC 61850 certification should not be deployed in utility environments without vendor validation.

Network redundancy and fault-tolerant topologies

Industrial network redundancy protocols are not optional in production-critical environments — they are the difference between a cable fault lasting 30 seconds and one causing a four-hour line shutdown. Industrial network redundancy protocols (RSTP/MRP) each address different scenarios with different recovery time characteristics.

RSTP, MRP, HSR, and PRP: choosing the right redundancy protocol

RSTP (Rapid Spanning Tree Protocol, IEEE 802.1w) offers recovery within 1–5 seconds — acceptable for non-time-critical applications but too slow for motion control. MRP (Media Redundancy Protocol, IEC 62439-2) is the PROFINET-native ring redundancy protocol, offering recovery under 200 ms with standard configuration and under 30 ms with Fast MRP. HSR (High-availability Seamless Redundancy, IEC 62439-3 Clause 5) and PRP (Parallel Redundancy Protocol, IEC 62439-3 Clause 4) provide zero-recovery-time redundancy by simultaneously transmitting frames over two parallel paths — critical for IEC 61850 substation applications and safety-relevant control loops. Layer 2 vs Layer 3 industrial switching considerations also matter here: Layer 3 switches enable VLAN routing between OT zones but add latency and configuration complexity that can interfere with tight-loop redundancy protocols.

Ring topology vs star topology: a practical comparison

Ring topologies using MRP minimise cabling in linear production lines (conveyor systems, assembly lines) while providing single-fault resilience. Star topologies with uplink redundancy offer better scalability and simpler diagnostics. In practice, the optimal SCADA network architecture design for a large German automotive plant typically combines both: star topology at the cell/zone level (individual machining centres) with ring topology at the line level to protect the backbone from single-cable failures.

Troubleshooting common industrial Ethernet switch failures

Even well-designed networks fail. The ability to diagnose faults systematically separates engineers who resolve issues in minutes from those who spend hours replacing hardware unnecessarily. Based on real case data from industrial network maintenance projects, the following five failure modes account for over 75% of unplanned network outages in factory automation network infrastructure.

Step-by-step fault diagnosis workflow

Verify physical layer first. Check port LEDs, cable continuity (TDR test), SFP module seating, and connector integrity. Over 30% of reported "switch failures" in manufacturing environments are actually cable or connector faults triggered by vibration or thermal cycling.
Check for broadcast storms. A broadcast storm caused by a misconfigured or looped cable will saturate all ports and cause the switch to become unresponsive. Use SNMP counters or the switch CLI to inspect per-port broadcast frame rates. Rates exceeding 5,000 frames/second indicate a storm condition. Storm control features (available on all managed switches) should be pre-configured with thresholds before deployment.
Inspect spanning tree topology changes. Excessive Topology Change Notifications (TCNs) in RSTP/MRP environments flush MAC address tables, causing flooding. Use show spanning-tree detail or equivalent CLI command to identify which port is generating TCNs. Unstable ports should be configured with PortFast (edge port mode) if they connect to end devices rather than other switches.
Audit MAC address table aging. Default MAC aging timers (typically 300 seconds) can cause intermittent connectivity loss if end devices transmit infrequently. In PROFINET environments with IO devices that communicate only on demand, reduce the aging timer to 60 seconds or configure static MAC entries for critical devices.
Review QoS queue saturation. In mixed-traffic networks carrying both real-time industrial data transmission and bulk SCADA data, improper QoS configuration allows low-priority traffic to displace time-critical frames. Verify DSCP markings and confirm that PROFINET RT/IRT frames are mapped to the highest-priority egress queue.

Port flapping and EMI-induced instability

Electromagnetic interference from variable-frequency drives, welding equipment, and large motor starters remains a leading cause of intermittent port instability in manufacturing environments. Actual testing in a pressing plant near Hannover confirmed that unshielded Cat5e cables routed parallel to 400V motor cables within the same cable tray caused link-state fluctuations every 8–12 seconds during press cycles. The resolution: replace with shielded Cat6a or fibre optic runs, maintain minimum 200mm separation from power cables, and verify that switch chassis ground connections comply with the installation manual. Ruggedised network hardware for manufacturing includes enhanced EMI filtering precisely because these conditions are expected, not exceptional.

TCO analysis and cost-benefit methodology for German manufacturers

Purchase price is the least informative metric when evaluating industrial network hardware. A managed switch priced at EUR 1,400 that eliminates two unplanned stoppages per year delivers a fundamentally different economic outcome than an unmanaged unit at EUR 180 that contributes to four stoppages annually. German manufacturers — particularly Mittelstand companies operating on 3–5% net margins — need a structured total cost of ownership (TCO) framework to justify capital expenditure to finance and operations leadership.

TCO calculation methodology

A 5-year TCO model for industrial switch infrastructure should incorporate the following cost categories:

Capital expenditure (CapEx): Hardware purchase, installation labour, cabling, DIN rail ethernet switch configuration and commissioning (typically 4–8 hours per managed switch for full PROFINET integration).
Operational expenditure (OpEx): Firmware update management, SNMP monitoring licence fees (if applicable), periodic physical inspection in harsh environments.
Downtime cost: For a German automotive supplier running at EUR 8,000–15,000 per production-hour, even a 45-minute unplanned outage attributable to a network fault generates losses exceeding the cost differential between a managed and unmanaged switch. Use your plant's documented OEE (Overall Equipment Effectiveness) data to calculate actual downtime cost per hour.
Maintenance and replacement: Industrial switches with MTBF ratings above 500,000 hours (approximately 57 years) carry lower lifecycle replacement costs. Budget for fan-less designs in dirty environments — fan failures are a leading cause of premature switch mortality.
Compliance cost avoidance: A documented IEC 62443-compliant switch configuration reduces audit preparation time and avoids potential NIS2 penalty exposure, which under German transposition can reach EUR 10 million or 2% of global annual turnover for essential service operators.

Vendor landscape: key players in the German market

The German industrial networking market is served by a combination of global automation vendors and specialist networking manufacturers. Siemens SCALANCE, Phoenix Contact FL SWITCH, Hirschmann (Belden), Moxa, and Cisco Industrial Networking are the dominant managed industrial ethernet switches suppliers in the German and DACH region. For those evaluating broader product portfolios, Cisco's dedicated industrial ethernet switches range provides a useful reference point for feature benchmarking, particularly around TSN and cybersecurity capabilities. Procurement decisions should weigh not only unit price but also local technical support availability, TÜV certification for safety-relevant applications, and integration with existing PLC vendor ecosystems.

In summary, understanding industrial Ethernet switching at a deep technical level — encompassing hardware selection, protocol configuration, security compliance, redundancy design, fault diagnosis, and economic justification — is the core competency that distinguishes engineers who build resilient Industry 4.0 networks from those who repeatedly firefight avoidable failures. The field is evolving rapidly, with TSN and IT/OT convergence reshaping deployment norms throughout 2026 and beyond.

Frequently asked questions

Q: What is the difference between managed and unmanaged industrial Ethernet switches?

A: Managed switches provide VLAN segmentation, QoS, SNMP monitoring, and redundancy protocol support (MRP, RSTP), enabling full network control and fault visibility. Unmanaged switches are plug-and-play with no configuration capability. Use managed switches for any application requiring deterministic performance, redundancy, or IEC 62443 cybersecurity compliance.

Q: Is TSN (time-sensitive networking) ready for production deployment in 2026?

A: Yes, but selectively. TSN is production-ready for Greenfield deployments in automotive and machine tool sectors where end-to-end IEEE 802.1Qbv-compliant hardware (switches, PLCs, drives) can be specified from the outset. Retrofitting TSN into legacy PROFINET or EtherCAT environments requires careful compatibility validation and is not yet straightforward.

Q: What does IEC 62443 compliance require for industrial switch configuration?

A: At Security Level 2, IEC 62443 requires authenticated management access (no default credentials), encrypted management protocols (SSH/HTTPS), IEEE 802.1X port authentication, VLAN-based OT network segmentation, and audit logging of all configuration changes. Compliance must be documented for NIS2 audits applicable to German essential service operators.

Q: How do I diagnose a broadcast storm on an industrial Ethernet network?

A: Use the switch CLI or SNMP management interface to inspect per-port broadcast frame counters. Rates above 5,000 frames/second per port indicate a storm. Isolate the affected segment by disconnecting suspect ports one at a time, then identify the loop source. Pre-configure storm control thresholds on all managed switches before deployment to limit impact.

Q: What is the typical 5-year TCO difference between managed and unmanaged industrial switches?

A: In a German automotive manufacturing context, a managed switch at EUR 1,400 CapEx, amortised over five years and accounting for two avoided downtime events annually (valued at EUR 10,000/hour each), yields a net positive ROI within 8–12 months. Unmanaged switches have lower CapEx but no diagnostic capability, making downtime events longer and more frequent in complex multi-device topologies.
